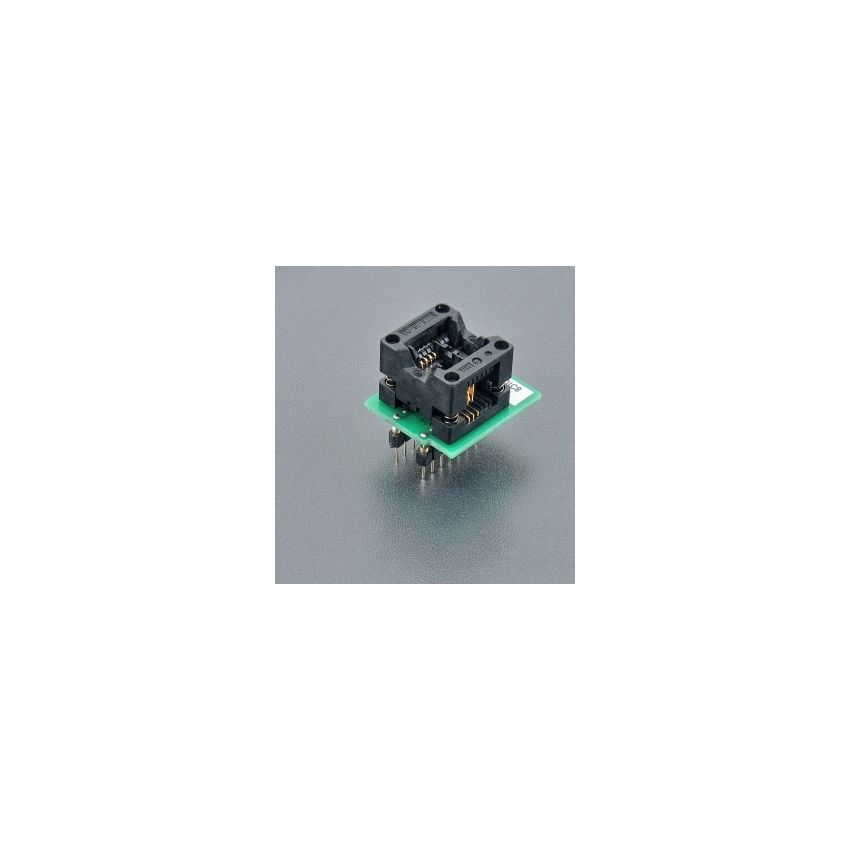

DIL8/SOIC8 ZIF 150mil

The universal adapter with order number 70-0781 is designed for use with devices in SOIC8/SOP8/VOIC8 (Small Outline Integrated Circuit 8) package, such as serial EEPROMs, serial FLASHs, Zilog Z8Fxxxx series, Atmel ATtiny series, STM ST7xxx series, Microchip PIC 12xxx series, and others. However, it is recommended for use only with SEEprog programmer, as other programmers may have better stability with the DIL8W/SOIC8 ZIF 150mil (ord.no. 70-0901) adapter.



The ZIF (Zero Insertion Force) socket of the adapter has a mechanical warranty of 10,000 actuations, ensuring reliable and durable performance. The ZIF socket is of the OpenTop type, making it easy to insert and remove the devices during programming or other operations.



The bottom board of the adapter features 2 rows of 7 pins, arranged in a square pattern with a pin pitch of 0.6x0.6mm and rows spacing of 300mil. These pins provide the necessary connections for interfacing with the devices in SOIC8/SOP8/VOIC8 package, enabling data transfer, programming, and other operations.



The order number for this universal adapter is 70-0781, and it is made in Slovakia. It is recommended for use with SEEprog programmer and provides reliable and convenient programming and interfacing capabilities for devices in SOIC8/SOP8/VOIC8 package.
