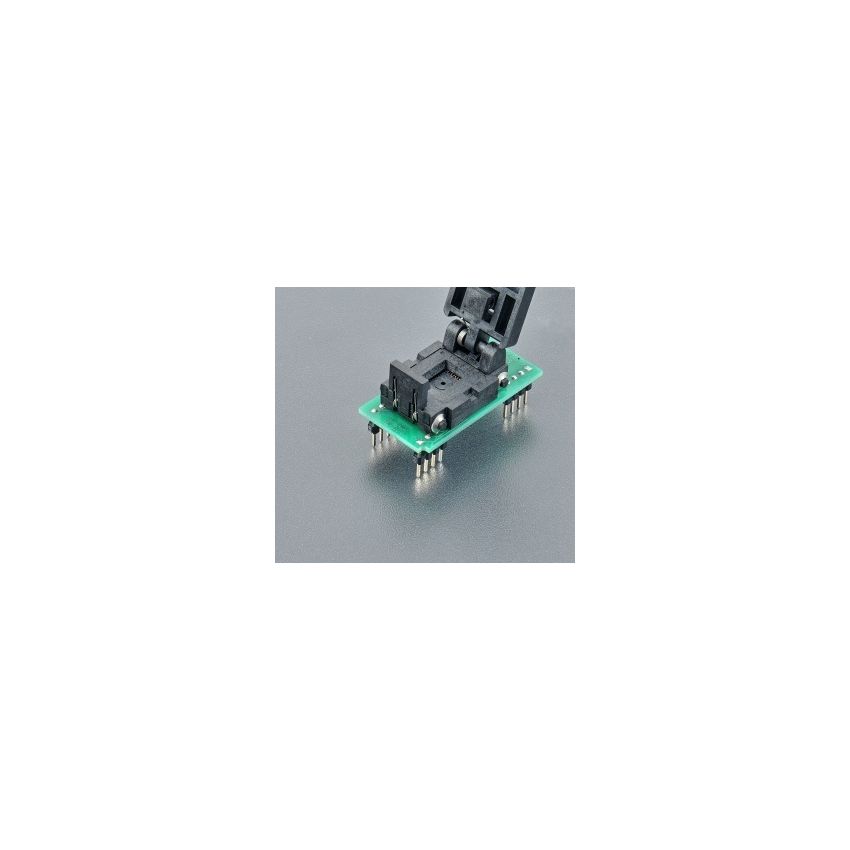

DIL8/QFN8-5 ZIF-CS

The universal adapter is designed for devices in QFN8/VDFN8/CASON8/MLP8/SON8/WSON8 package, such as serial FLASHs. It is manufactured in Slovakia and has an order number of 70-0751. The socket used in this adapter is a ZIF (Zero Insertion Force) type with a ClamShell design, allowing for easy insertion and removal of devices during programming and testing processes.



The ZIF socket has an operating mechanical warranty of 5,000 actuations, ensuring durability and reliability for repeated use. The bottom of the adapter features 2 rows of 2x 4 pins each, with an additional 2x 4 pins for improved stability. The pins are arranged in a square pattern with a pin pitch of 0.6x0.6mm and a row spacing of 600mil. This configuration allows for easy and secure connection to various devices in QFN8/VDFN8/CASON8/MLP8/SON8/WSON8 package, making it a versatile option for different types of serial FLASHs and other devices.



The universal adapter is designed to provide a reliable interface for programming and testing operations, making it a valuable tool for electronic engineers and technicians. With its durable construction and improved stability features, it offers a reliable solution for working with devices in QFN8/VDFN8/CASON8/MLP8/SON8/WSON8 package.
