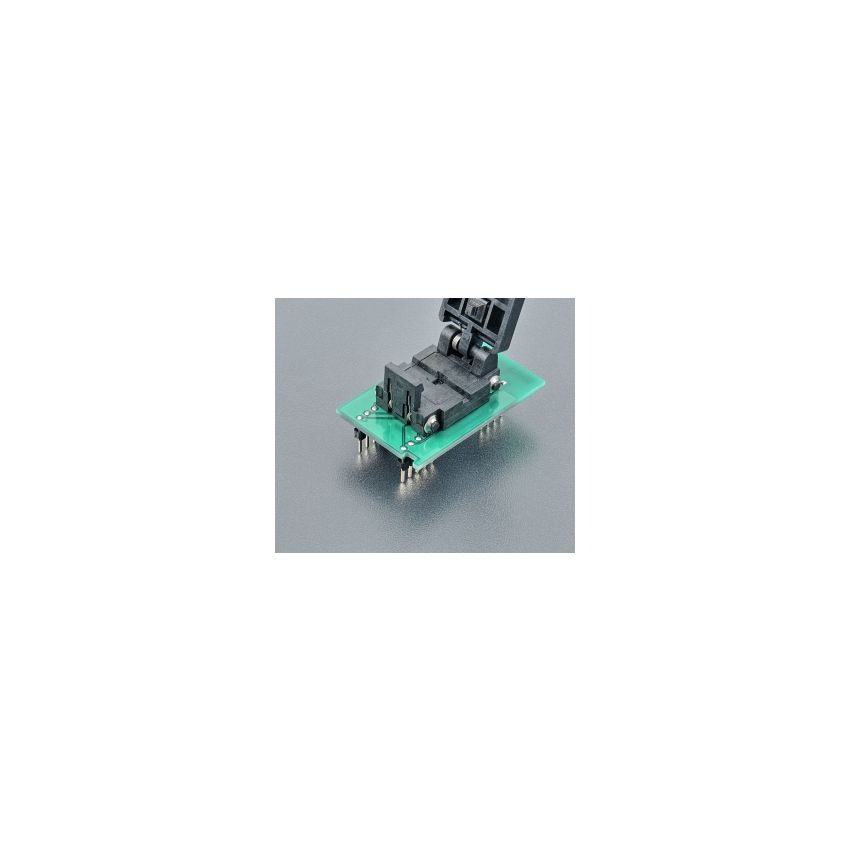

DIL8/QFN8-4 ZIF-CS

The universal adapter with Ord. no. 70-0485 is designed for devices in various packages, including QFN8, DFN8, TDFN8, UDFN8, VDFN8, MLP8, MLF8, SON8, VSON008, and USON8. These devices may include serial EEPROMs, serial FLASHs, and Microchip PIC 10xxx and PIC 12xxx series microcontrollers, among others.



The ZIF (Zero Insertion Force) socket on this adapter is of ClamShell type, providing a convenient and secure way to insert and remove devices for programming or testing operations. The ZIF socket has an operating (mechanical) warranty of 5,000 actuations, ensuring reliable performance for multiple uses.



The adapter is made in Slovakia, adhering to high-quality standards to ensure reliable and durable performance. The Ord. no. 70-0485 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



The bottom of the adapter features 2 rows of 2x4 pins, with an additional 2x4 pins for improved stability. The pins are arranged in a square pattern with a spacing of 0.6x0.6mm, and the rows are spaced 600 mil apart. These pins are designed to provide efficient and reliable connectivity to devices in the supported packages during programming or testing operations.



It is important to follow the manufacturer's guidelines for proper usage of the universal adapter to ensure correct functionality and avoid potential damage to the devices or the adapter. The operating (mechanical) warranty of 5,000 actuations provides assurance of the durability and reliability of the ZIF socket, making it suitable for multiple uses in professional environments.
