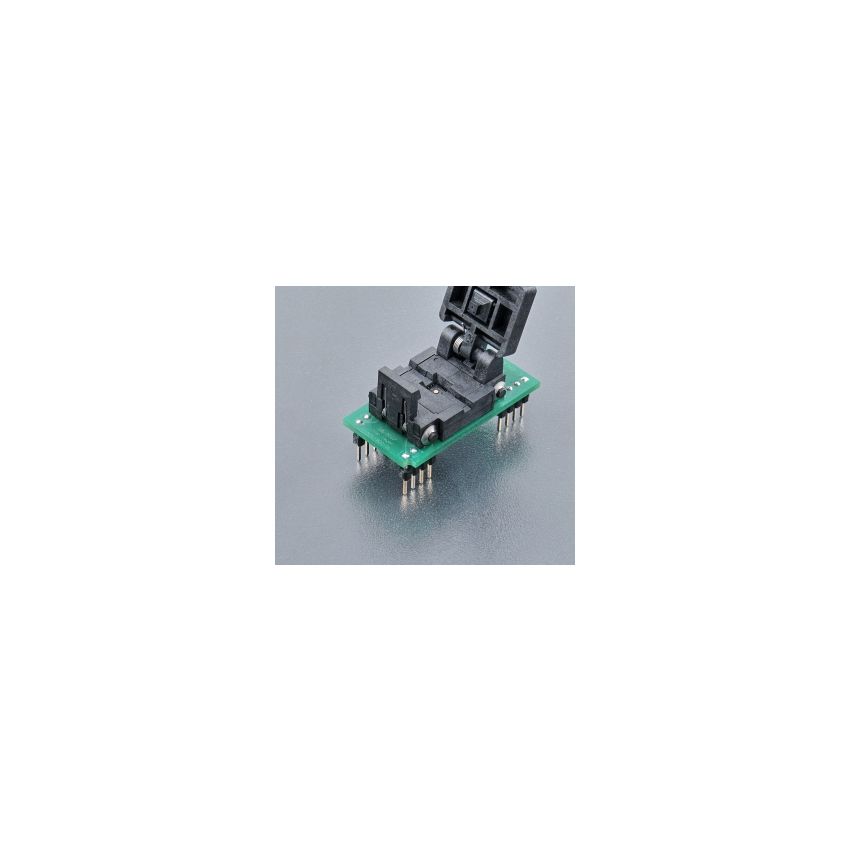

DIL8/QFN8-3 ZIF-CS

The universal adapter with order number 70-0471 is designed for use with devices in QFN8, MLP8, MLF8, SON8, and DFN8 packages, such as serial FLASHs, Microchip PIC12Fxxx series microcontrollers, and Freescale HCS08 series microcontrollers. This adapter provides a versatile solution for programming and testing these devices during development and production processes.



The adapter features a ZIF (Zero Insertion Force) socket in a QFN8 package with a ClamShell type design, allowing for easy insertion and removal of the devices for programming and testing purposes. The ZIF socket has a mechanical warranty of 5,000 actuations, ensuring durability and long-term reliability.



The bottom board of the adapter features 2 rows of 2x4 pins (plus 2x2 pins for improved stability) in a square configuration, with a pin pitch of 0.6x0.6mm and row spacing of 600mil. This configuration is specifically designed for compatibility with devices in QFN8, MLP8, MLF8, SON8, and DFN8 packages, providing precise and secure connections for programming and testing purposes.



The adapter is made in Slovakia to high manufacturing standards, ensuring quality and reliability. The order number for this universal adapter is 70-0471, and it is designed for use with devices in QFN8, MLP8, MLF8, SON8, and DFN8 packages, including serial FLASHs, Microchip PIC12Fxxx series microcontrollers, and Freescale HCS08 series microcontrollers.
