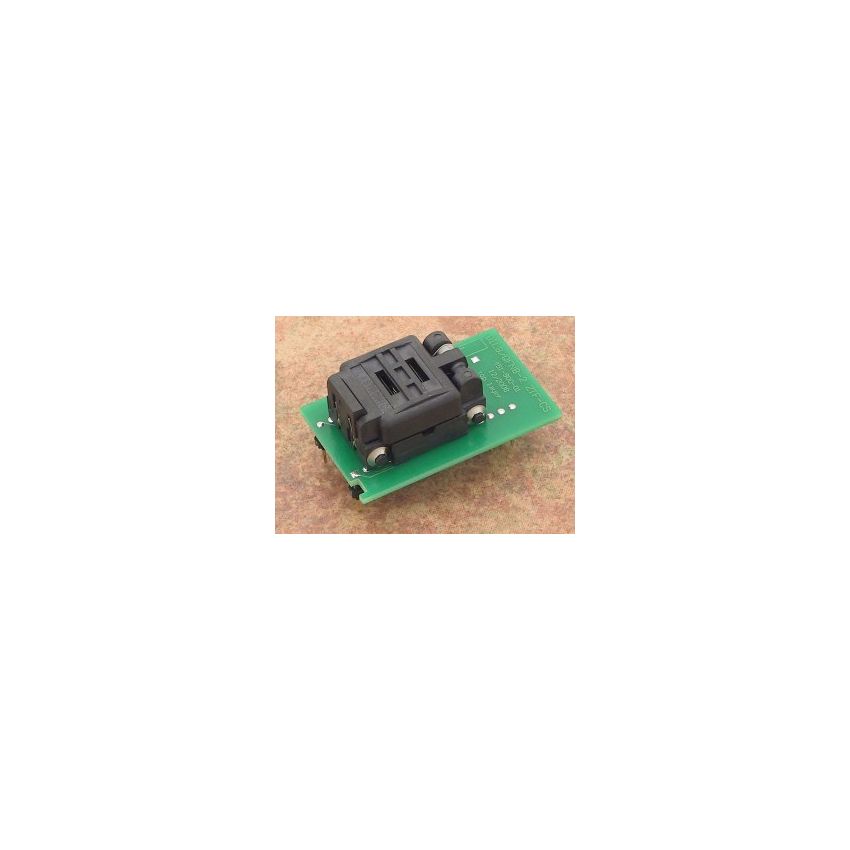

DIL8/QFN8-2 ZIF-CS

The universal adapter with Ord. no. 70-0451 is designed for devices in QFN8/MLP8/MLF8/SON8/LAP8 packages, such as Atmel AT17C/LV/F/N series. This adapter is made in Slovakia to high-quality standards, ensuring reliable performance.



The socket on this adapter is a ZIF (Zero Insertion Force) socket with a ClamShell type design, allowing for easy insertion and removal of the QFN8/MLP8/MLF8/SON8/LAP8 packaged devices without applying excessive force. The ZIF socket has an operating (mechanical) warranty of 5,000 actuations, ensuring durability and longevity.



The bottom of the adapter features 2 rows of 2x 4 pins each, with an additional 2x 4 pins for improved stability. The pins are arranged in a square pattern with a pin spacing of 0.6x0.6mm and rows spacing of 600mil. This design allows for a reliable electrical connection to the QFN8/MLP8/MLF8/SON8/LAP8 packaged devices, enabling efficient testing, programming, or other operations.



The Ord. no. 70-0451 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to verify the compatibility of the adapter with the specific devices and packages before proceeding with any operations to ensure proper functionality and avoid potential damage to the devices or the adapter.
