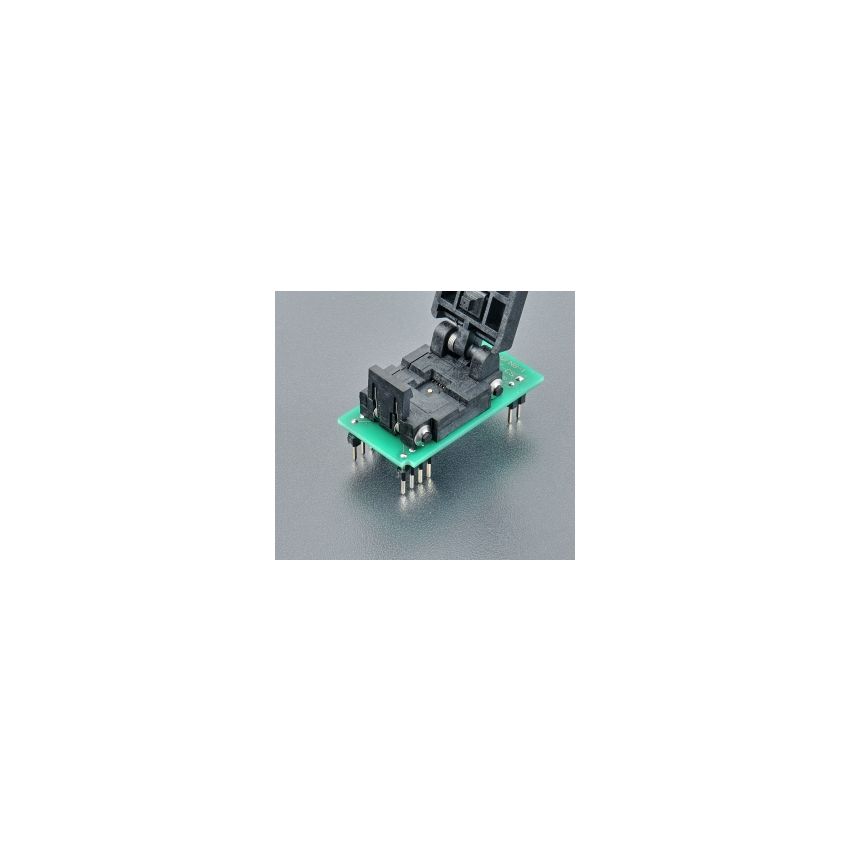

DIL8/QFN8-1 ZIF-CS

The universal adapter assigned for devices in QFN8/MLP8/MLF8/SON8 package is designed to accommodate various types of devices such as serial EEPROMs, serial FLASHs, Zilog Z8Fxxxx series microcontrollers, and Microchip PIC 12xxx series microcontrollers. It features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 5,000 actuations, providing reliable and durable performance for repeated use in programming and testing operations.



The adapter is made in Slovakia and is identified by Ord. no. 70-0312. It features a ZIF QFN8 socket in a ClamShell type configuration, providing easy insertion and removal of the devices. The bottom side of the adapter has 2 rows of 2x4 pins, along with 2 additional pins for improved stability, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This design allows for efficient and secure connection of QFN8/MLP8/MLF8/SON8 devices for programming and testing purposes.
