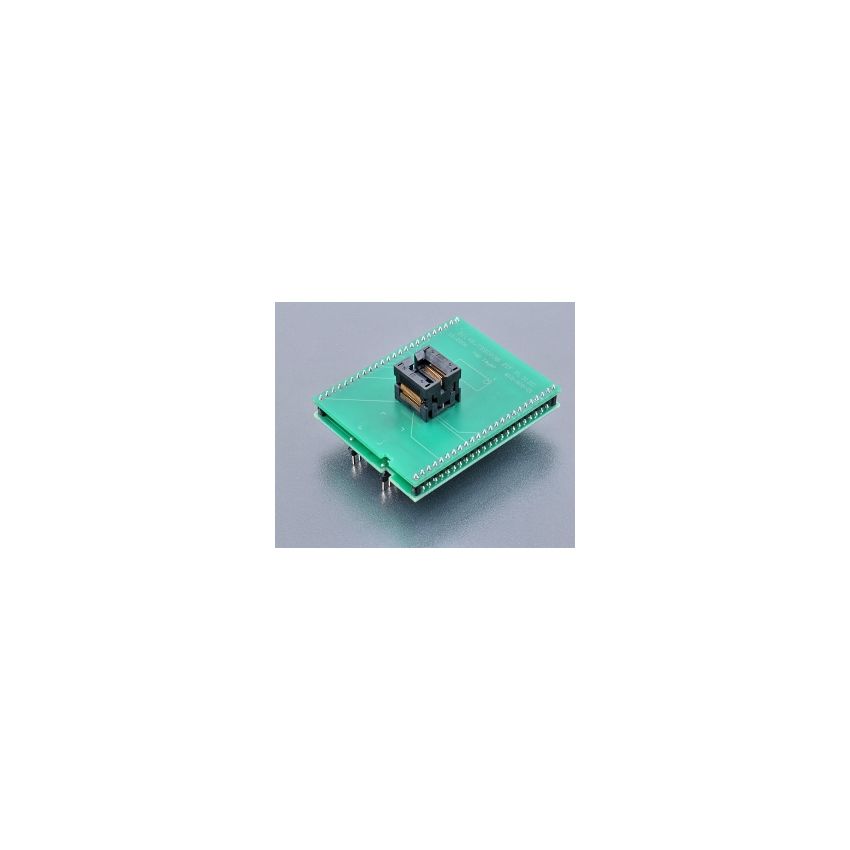

DIL48/TSSOP38 ZIF PL3120

The special adapter with Ord. no. 70-0610 is designed specifically for programming or testing Echelon PL3120-E4T10 microcontrollers in TSSOP38 (Thin Shrink Small Outline Package) package. It features a high-quality ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, ensuring durability and reliability during repeated use.



The ZIF socket is of OpenTop type, which allows for easy insertion and removal of the TSSOP38 package without the need for any additional tools. The bottom of the adapter features 2 rows of 24 pins each, arranged in a square pattern with a pin pitch of 0.6x0.6mm and rows spacing of 600mil (mil is a unit of length equivalent to 1/1000 inch).



The special adapter is made in Slovakia, known for its high-quality manufacturing standards, ensuring reliable performance. The Ord. no. 70-0610 adapter is a specialized solution for programming or testing Echelon PL3120-E4T10 microcontrollers in TSSOP38 package, providing efficient and effective operation.
