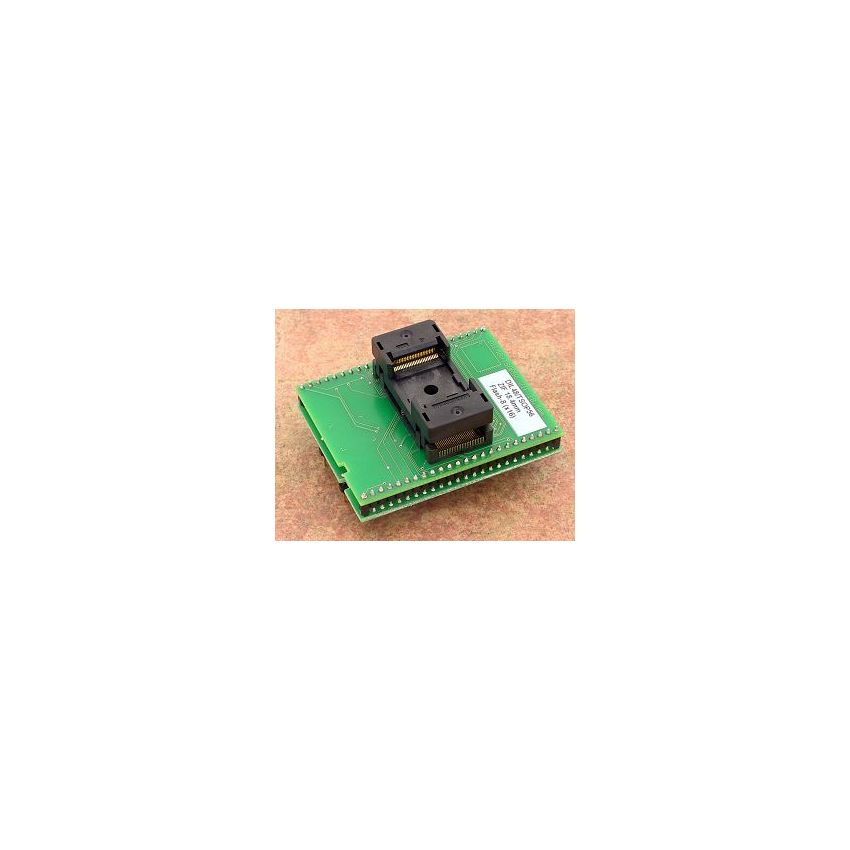

DIL48/TSOP56 ZIF 18.4mm Flash-8 (x16)

The special adapter with order number 70-0748 is designed for use with Flash EPROMs in TSOP56 (Thin Small Outline Package) package, specifically with Samsung K8P5615VQA's pinout. This adapter is manufactured in Slovakia to high-quality standards, ensuring reliability and performance.



The ZIF (Zero Insertion Force) socket on this adapter has an operating (mechanical) warranty of 10,000 actuations, providing durability for repeated use during programming and testing operations. The ZIF socket is of OpenTop type, which allows for easy insertion and removal of the TSOP56 package.



The bottom board of this adapter features 2 rows of 2x24 pins, arranged in a square pattern with a pin pitch of 0.6x0.6mm and rows spacing of 600mil. These pins provide the necessary connections for interfacing with the TSOP56 package of Flash EPROMs with Samsung K8P5615VQA's pinout.



The order number for this special adapter is 70-0748, and it is specifically designed for use with TSOP56 packages of Flash EPROMs with Samsung K8P5615VQA's pinout. It provides a reliable and efficient solution for programming and testing of these Flash EPROMs with its high-quality construction, precise pin arrangement, and ZIF socket with a mechanical warranty of 10,000 actuations.
