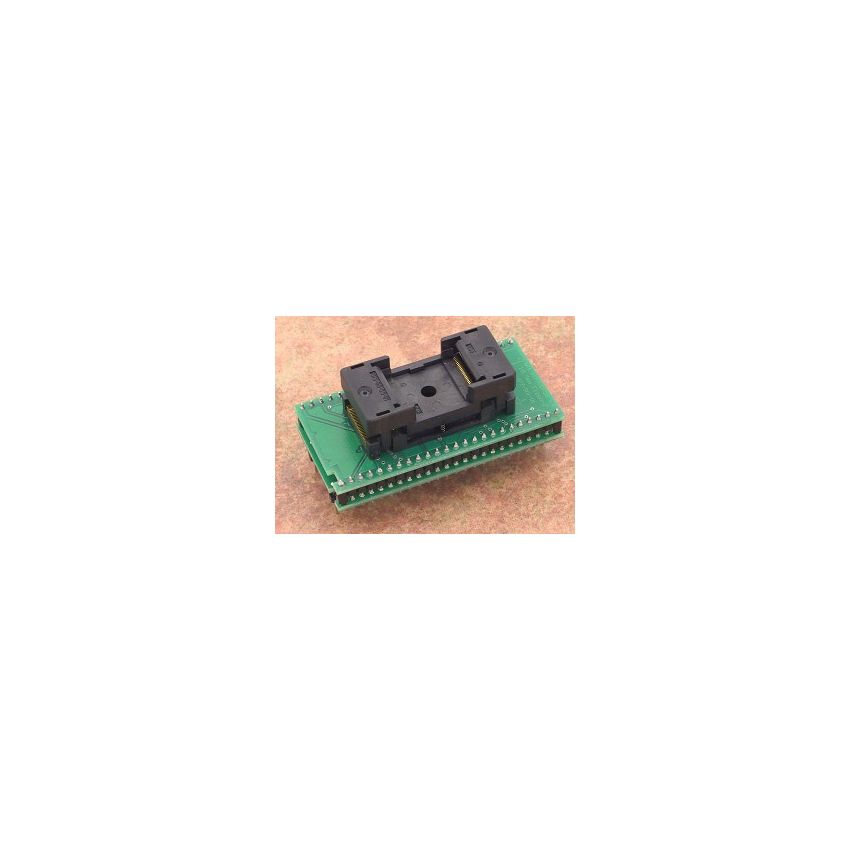

DIL48/TSOP56 ZIF 18.4mm Flash-7

The special programming adapter with Ord. no. 70-0477 is designed for Flash EPROMs in TSOP56 package, such as S29PL127JxxTxx13's pinout. This adapter is intended for use in programming or testing Flash EPROMs in TSOP56 package with ease and convenience.



The ZIF (Zero Insertion Force) socket of this adapter has a mechanical warranty of 10,000 actuations, ensuring durability and reliability during frequent use. It is designed to securely hold the TSOP56 package during programming or testing operations, minimizing the risk of damage to the devices or the adapter.



The adapter is made in Slovakia, adhering to high-quality standards to ensure reliable performance. The Ord. no. 70-0477 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



The ZIF socket of the adapter is of OpenTop type, allowing easy insertion and removal of the TSOP56 package without the need for excessive force. The bottom board of the adapter features 2 rows of 2x24 pins arranged in a square pattern with a pin spacing of 0.6x0.6mm and a row spacing of 600mil. These pins are designed to provide a secure and reliable connection to the TSOP56 package, ensuring efficient programming or testing operations.



It is important to follow the manufacturer's guidelines for proper usage of the adapter to ensure correct functionality and avoid potential damage to the devices or the adapter.
