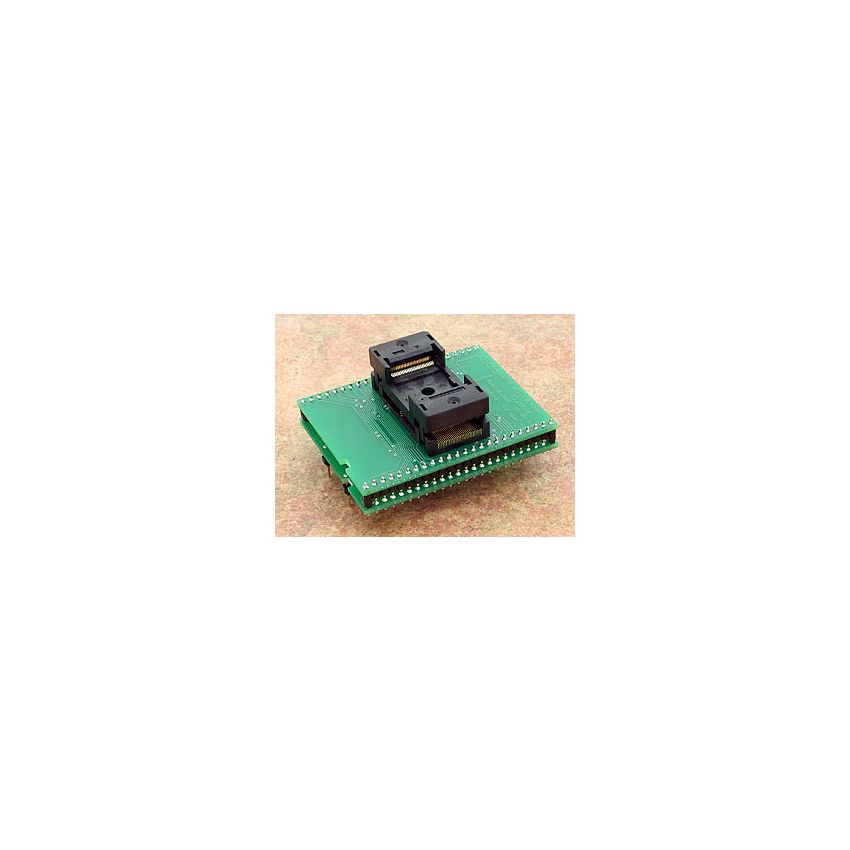

DIL48/TSOP56 ZIF 18.4mm Flash-6

The special adapter with Ord. no. 70-0371 is specifically designed for Flash EPROMs in TSOP56 package with M58LW128A's pinout. It features a ZIF (Zero Insertion Force) socket that is capable of accepting TSOP56 packages with ease, using an OpenTop type design for easy insertion and removal of the devices during programming and testing operations.



The bottom board of the adapter features 2 rows of 2x 24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This allows for precise and reliable connections between the adapter and the target devices, ensuring accurate programming and testing.



The ZIF socket on the adapter has a mechanical warranty of 10,000 actuations, providing durability and reliability in professional use. It is designed to withstand repeated actuations without compromising its performance or lifespan.



The adapter is made in Slovakia using high-quality materials and manufacturing processes, ensuring its quality and performance. The Ord. no. 70-0371 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



Please note that this adapter is specifically designed for Flash EPROMs in TSOP56 package with M58LW128A's pinout, and may not be suitable for other devices or pinouts. It is important to verify the compatibility of the adapter with the specific devices you intend to use before proceeding with programming or testing operations.
