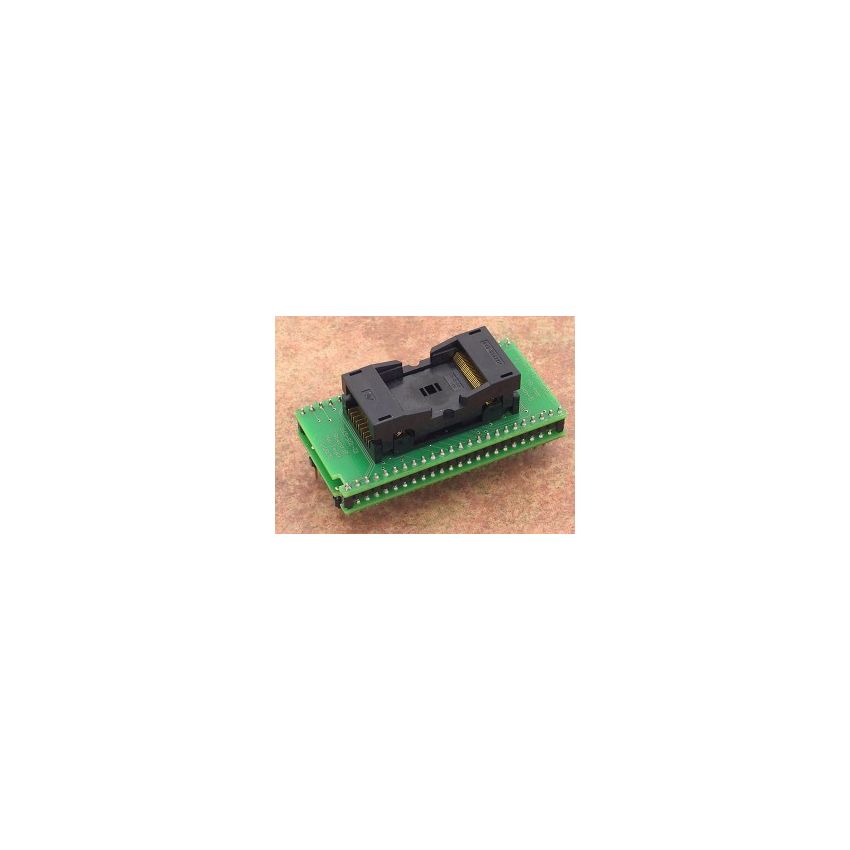

DIL48/TSOP56 ZIF 18.4mm Flash-5

The special adapter with Ord. no. 70-0363 is designed for Flash EPROMs (Erasable Programmable Read-Only Memory) in TSOP56 package, specifically the TE28F640P30 series. It features a ZIF (Zero Insertion Force) socket with an OpenTop type, allowing for easy insertion and removal of the devices without the need for additional tools.



The ZIF socket on this adapter has an operating (mechanical) warranty of 10,000 actuations, ensuring its durability and long-term use in programming and testing operations. The bottom board of the adapter has 2 rows of 2x 24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil, providing precise and reliable connections to the devices during programming and testing.



This special adapter is specifically designed for Flash EPROMs in TSOP56 package, such as the TE28F640P30 series, making it a reliable and efficient solution for programming and testing these devices in a professional setting. It is made in Slovakia using high-quality materials and manufacturing processes to ensure its reliability and performance.
