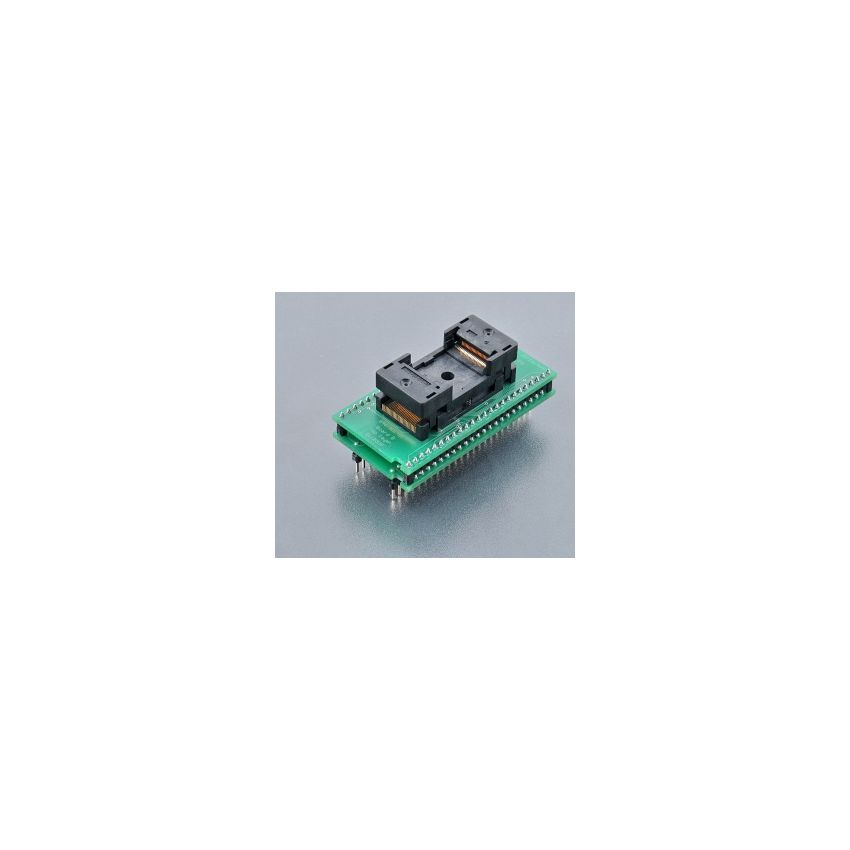

DIL48/TSOP56 ZIF 18.4mm Flash-10

The special adapter is designed for use with Flash EPROMs in TSOP56 (Thin Small Outline Package) packages, specifically with the pinout of the SHARP LH28F128BFHT. The ZIF (Zero Insertion Force) socket on the adapter has an operating (mechanical) warranty of 10,000 actuations, ensuring its durability and reliability during repeated use. The adapter is manufactured in Slovakia with a high level of craftsmanship and quality.



The order number for this adapter is 70-0846. It features a ZIF TSOP56 socket with an OpenTop type design, which allows for easy insertion and removal of the TSOP56 package. The OpenTop design provides a secure and reliable connection to the Flash EPROM in the TSOP56 package for programming and testing operations.



The bottom of the adapter has 2 rows of 2x24 pins, arranged in a square pattern with a pin pitch of 0.6x0.6mm and rows spacing of 600 mil. This configuration provides a reliable and secure connection to the Flash EPROM in the TSOP56 package, ensuring accurate programming and testing operations.



The adapter is a valuable tool for electronic engineers and technicians working with Flash EPROMs in TSOP56 packages, especially with the pinout of the SHARP LH28F128BFHT. It is designed to provide a reliable and efficient interface for programming and testing operations, and is manufactured in Slovakia to ensure high quality and performance.
