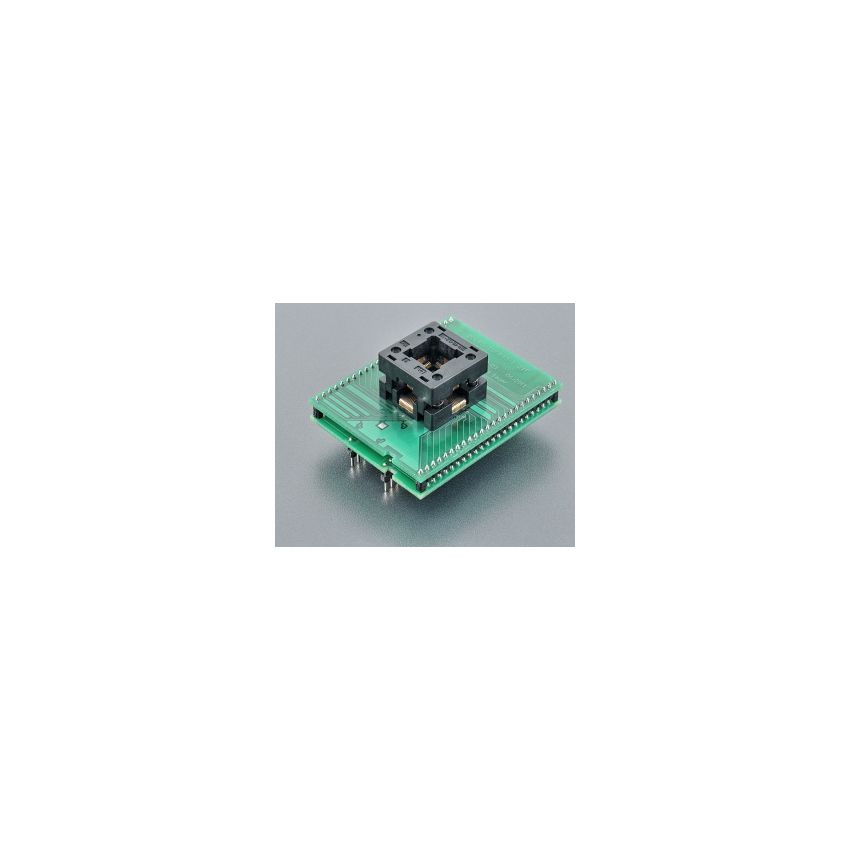

DIL48/TQFP48-1 ZIF

The universal adapter is designed for programming and testing devices in QFP48, LQFP48, and TQFP48 packages, including NEC uPD78Fxxx series, STM STM32Fxx series, ST7xxx series, Motorola/Freescale Semic. HC08, HCS08 series, and Texas Instruments/Luminary Micro LM3Sxxx series, among others. It features a ZIF (Zero Insertion Force) socket with a QFP48 type design, known as OpenTop type, allowing for easy insertion and removal of devices during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The bottom of the universal adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for QFP48, LQFP48, and TQFP48 devices, providing a secure and reliable connection during programming and testing.



The universal adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0166. It provides a reliable solution for programming and testing various devices in QFP48, LQFP48, and TQFP48 packages, offering durability, versatility, and ease of use for programming needs.
