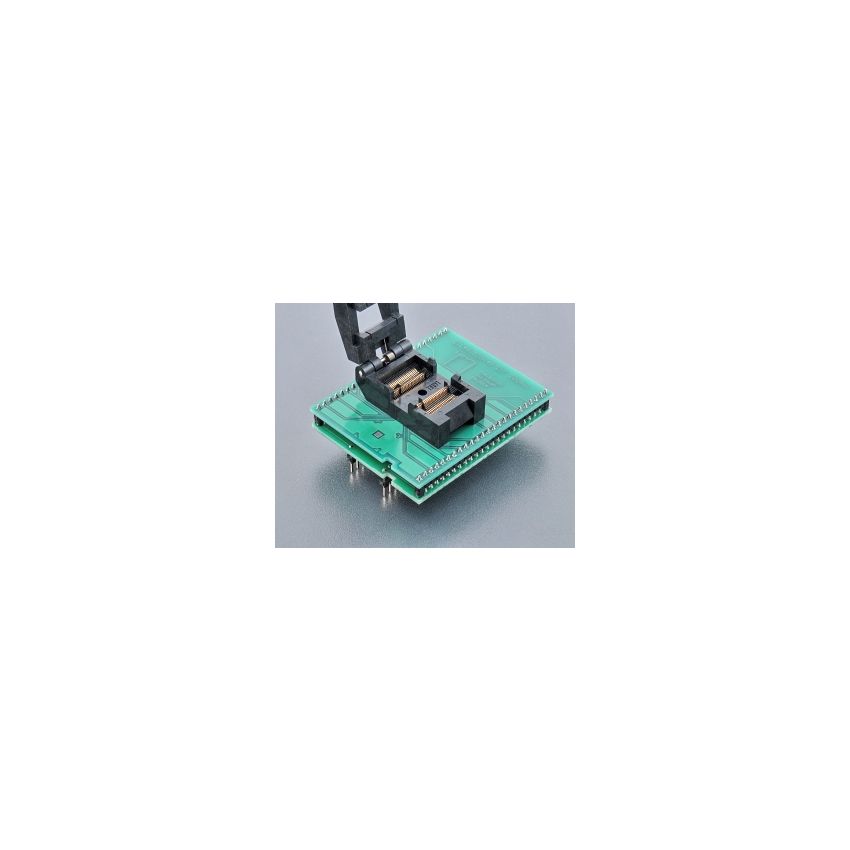

DIL48/SSOP48 ZIF-CS 300mil

The universal adapter is designed for devices in SSOP48 packages, such as Simtek, Cypress NVRAMs, Zilog ZGP323xxxxxx, ZLF645xxxxxxx, ZLP323xxxxxxx series, TI (TMS) MSP430 series, Cypress CY7Cxxxxx, CY8Cxxxxx series, and others. It is manufactured in Slovakia and has an order number of 70-0194. The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations, ensuring reliable and durable performance over repeated usage.



The ZIF socket on the adapter is of the ClamShell type, providing easy insertion and removal of the SSOP48 devices without requiring excessive force. The bottom board of the adapter has 2 rows of 2x24 pins each, arranged in a square pattern with a pin pitch of 0.6x0.6mm and a row spacing of 600mil. This configuration allows for seamless connection to devices in SSOP48 packages, providing a universal solution for programming, testing, and other operations.



The universal adapter is designed to provide a reliable interface for programming, testing, and other operations involving devices in SSOP48 packages from various manufacturers. Its durable construction and ZIF socket with a high mechanical warranty ensure long-lasting performance and repeated use without compromising on reliability. It is a valuable tool for electronic engineers and technicians working with devices in SSOP48 packages, making programming, testing, and other operations efficient and hassle-free.
