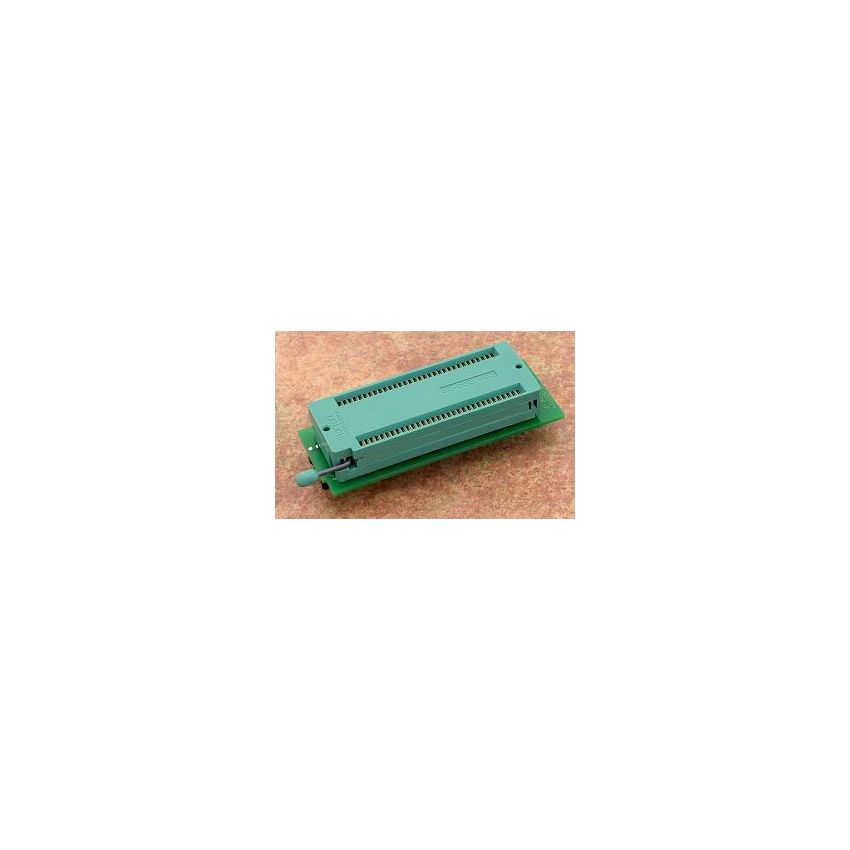

DIL48/SDIP64 ZIF MB90F-2

The special adapter with Ord. no. 70-0381 is specifically designed for use with the Fujitsu MB90F462 microcontroller in SDIP64 package. It features a ZIF (Zero Insertion Force) socket with an SDIP64 type design, allowing for easy insertion and removal of the microcontroller during programming and testing operations.



The bottom board of the adapter features 2 rows of 2x 24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This configuration is designed to match the pinout of the Fujitsu MB90F462 microcontroller in SDIP64 package, ensuring accurate and reliable connections between the adapter and the target device during programming and testing operations.



The ZIF socket on the adapter has a mechanical warranty of 20,000 actuations, providing a high level of durability and reliability in professional use. It is designed to withstand repeated actuations without compromising its performance or lifespan, ensuring a long-lasting and dependable solution for programming and testing the Fujitsu MB90F462 microcontroller.



The adapter is made in Slovakia using high-quality materials and manufacturing processes, ensuring its quality and performance. The Ord. no. 70-0381 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



Please note that this adapter is designed specifically for use with the Fujitsu MB90F462 microcontroller in SDIP64 package, and may not be suitable for other devices or packages. It is important to verify the compatibility of the adapter with the specific microcontroller you intend to use before proceeding with programming or testing operations.
