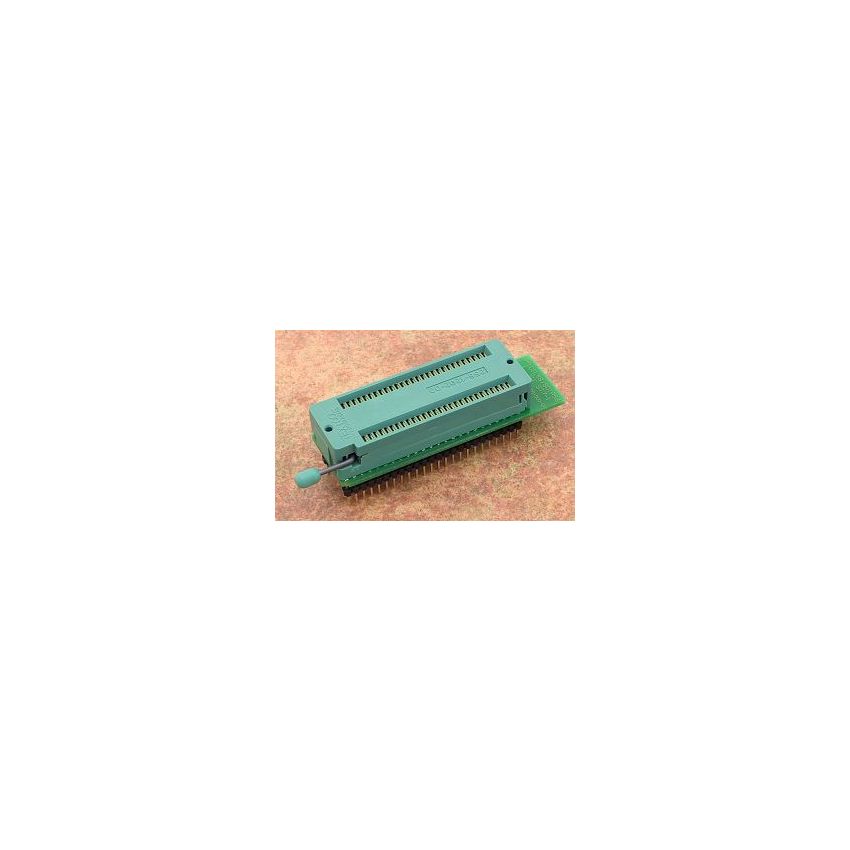

DIL48/SDIP56 ZIF ST7-1

This special adapter is designed specifically for STM ST7xxx devices in the SDIP56 package, such as ST72x314Nx and ST72x334N4B. The adapter is intended to facilitate easy programming and testing of these devices.



The ZIF (Zero Insertion Force) socket of the adapter has a mechanical warranty of 20,000 actuations, ensuring its durability and reliable performance during repeated usage. The adapter is manufactured in Slovakia and is identified by the order number (Ord. no.) 70-0805.



The bottom of the adapter features 2 rows of 2x24 pins arranged in a square configuration, with a row spacing of 600 mil (0.6 inches). This configuration allows for easy and secure connection of the SDIP56 package of STM ST7xxx devices to the adapter during programming and testing operations. The ZIF socket provides convenient and secure placement of the device for programming and testing, making it a reliable and efficient tool for working with these specific devices.
