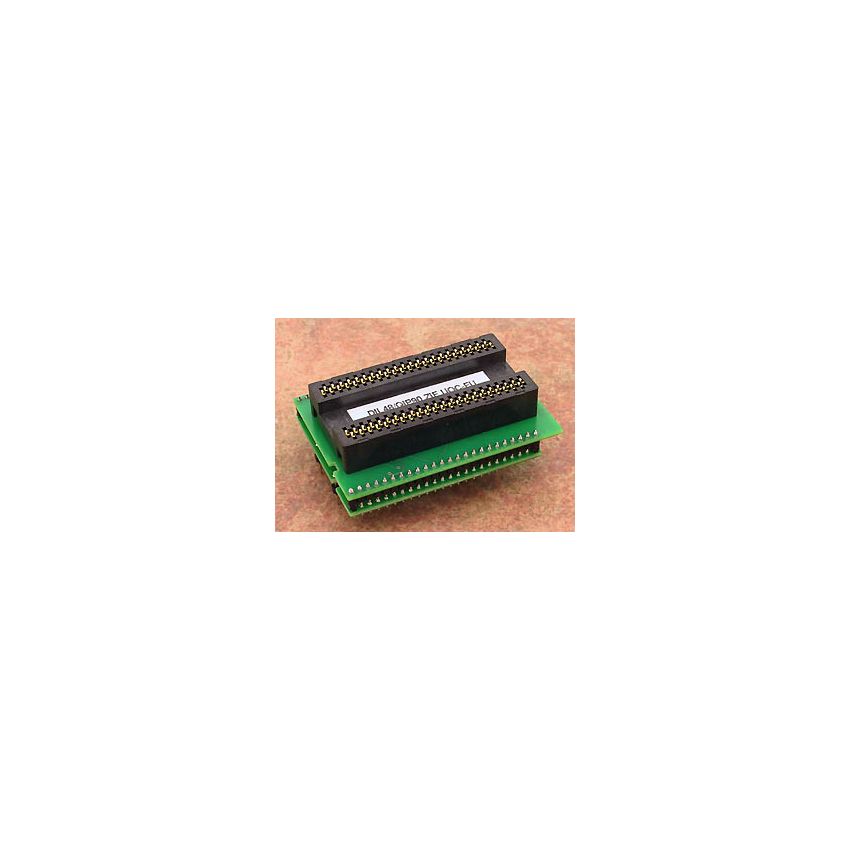

DIL48/QIP90 ZIF UOC-FU

The special adapter with Ord. no. 70-0506 is designed for use with NXP/Philips UOCIIIN (TDA1xxxx) processors in QIP90 package, with the option for face-up (FU) or standard version of pinout. It features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, ensuring reliable and durable performance during repeated use for programming or testing.



The adapter is made in Slovakia, adhering to high-quality standards to ensure reliable operation. The Ord. no. 70-0506 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



The ZIF socket on the adapter is of QIP90 OpenTop type, specifically designed for use with QIP90 packages. It features a bottom layout with 2 rows of 2x24 pins arranged in a square pattern, with a pin spacing of 0.6x0.6mm and row spacing of 600mil. This allows for secure and reliable connection between the adapter and the processors during programming or testing.



The adapter is compatible with NXP/Philips UOCIIIN (TDA1xxxx) processors in QIP90 package, with the option for face-up (FU) or standard version of pinout, providing flexibility for different pinout configurations.



It is important to follow the manufacturer's guidelines for proper usage of the adapter, including compatibility with specific processor models and package dimensions, to ensure correct functionality and avoid potential damage to the devices or the adapter.
