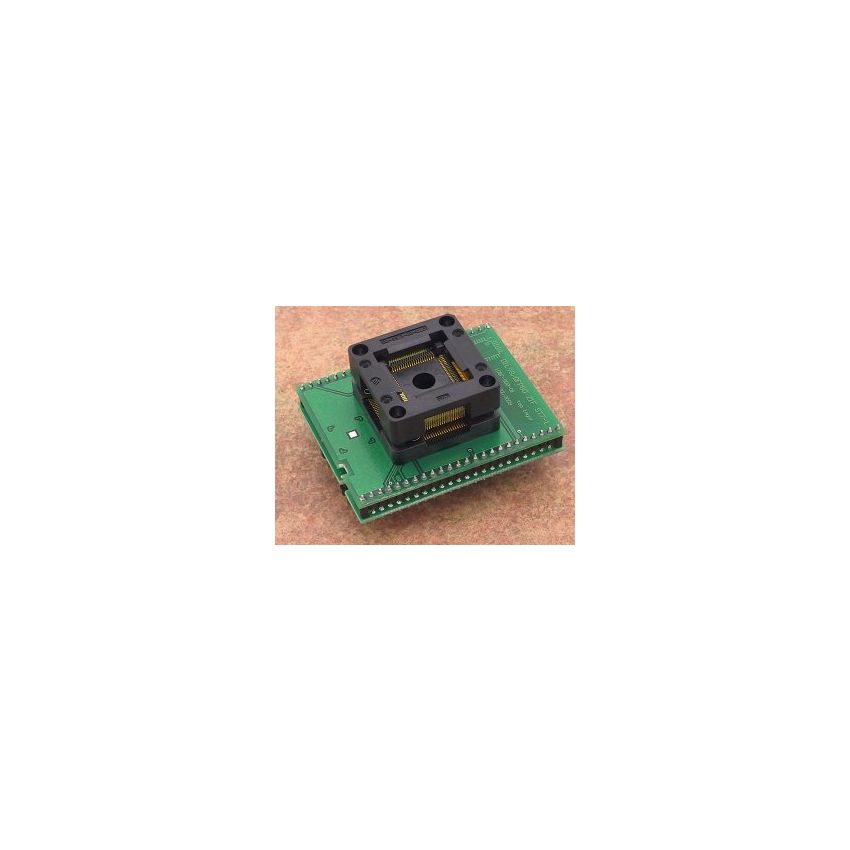

DIL48/QFP80 ZIF ST7-1

The special adapter with Ord. no. 70-1087 is designed specifically for STM ST7xxx devices in an LQFP80/TQFP80 package, such as the ST72F321M9T. This adapter is made in Slovakia and adheres to high-quality standards to ensure reliable performance.



The adapter features a ZIF (Zero Insertion Force) socket with an OpenTop type, which allows for easy and secure insertion and removal of the LQFP80/TQFP80 package during programming or testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, ensuring durability and longevity for repeated use.



The bottom board of the adapter has a 2x24 square pin configuration with a size of 0.6x0.6mm and a row spacing of 600mil. This pin configuration is designed to provide accurate alignment and electrical connectivity with the pins of the LQFP80/TQFP80 package, ensuring proper programming or testing of the STM ST7xxx devices.
