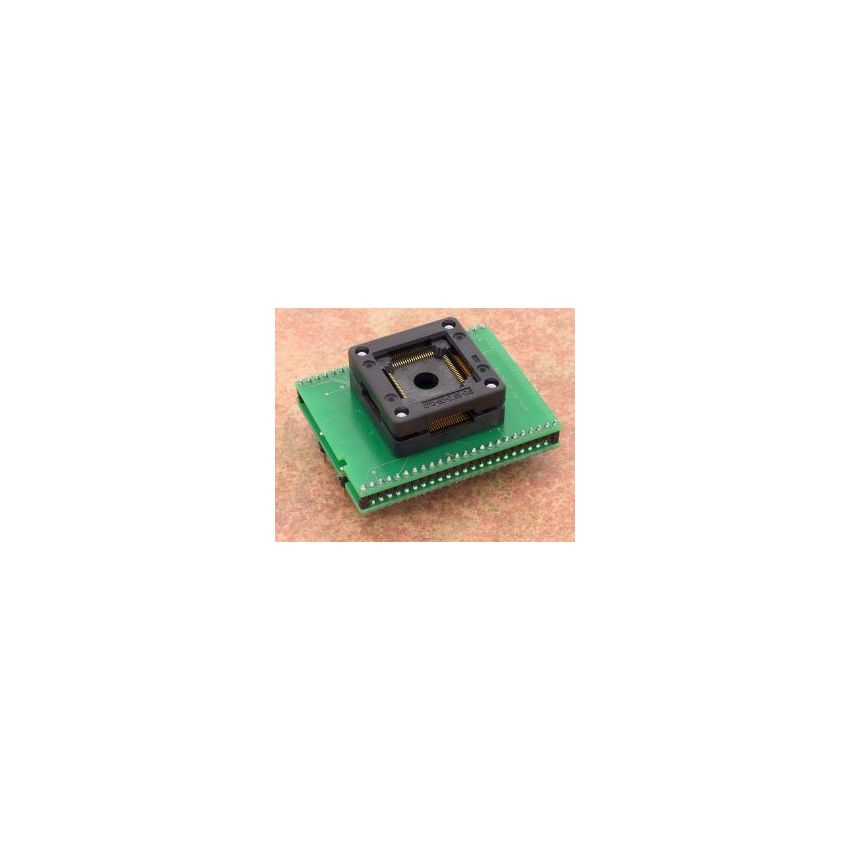

DIL48/QFP80 ZIF HD64-3

This special adapter is specifically designed for Renesas (Hitachi) HD64F3832xH devices in the QFP80 package. The adapter is intended to facilitate easy programming and testing of these devices.



The ZIF (Zero Insertion Force) socket of the adapter has a mechanical warranty of 10,000 actuations, ensuring its durability and reliable performance during repeated usage. The adapter is manufactured in Slovakia and is identified by the order number (Ord. no.) 70-0806.



The bottom of the adapter features 2 rows of 2x24 pins arranged in a square configuration, with a row spacing of 600 mil (0.6 inches). This configuration allows for easy and secure connection of the QFP80 package of Renesas (Hitachi) HD64F3832xH devices to the adapter during programming and testing operations. The ZIF socket is of OpenTop type, providing easy access to the device for placement and removal. This makes it a convenient and reliable tool for working with these specific devices.
