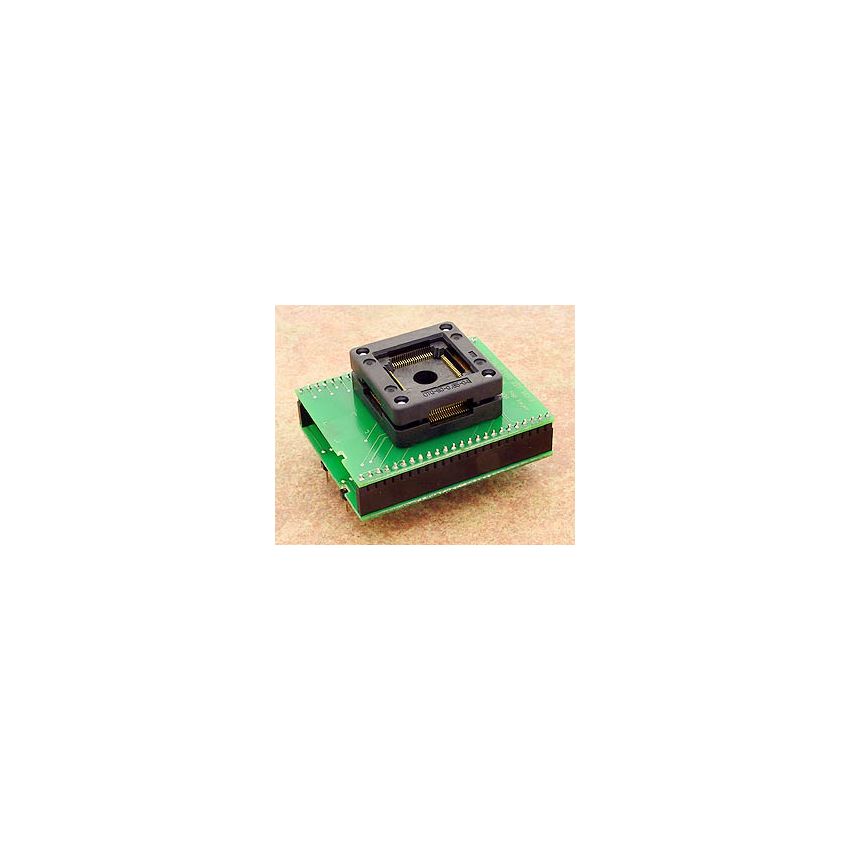

DIL48/QFP80 ZIF HD-1

The special adapter with Ord. no. 70-0447 is designed specifically for Renesas (Hitachi) HD4074818H and HD407L4818H devices in QFP80 (Quad Flat Package) package type. The adapter is made in Slovakia to high-quality standards, ensuring reliable performance.



The adapter features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, providing durability and longevity for repeated device insertion and removal operations. The ZIF socket is of the OpenTop type, which makes it easy to insert and remove QFP80 packages without applying excessive force or risking damage to the device or the adapter.



The bottom board of the adapter has 2 rows of 2x 24 pins each, arranged in a square pattern with a pin spacing of 0.6x0.6mm, and rows spacing of 600mil. This bottom board is designed to provide a reliable electrical connection to the corresponding pins of the QFP80 package, allowing for efficient and accurate testing, programming, or other operations with Renesas (Hitachi) HD4074818H and HD407L4818H devices.



The Ord. no. 70-0447 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to verify the compatibility of the adapter with the specific Renesas (Hitachi) device and package type before proceeding with any operations to ensure proper functionality and avoid potential damage to the device or the adapter.
