DIL48/QFP80 ZIF HCS12-3

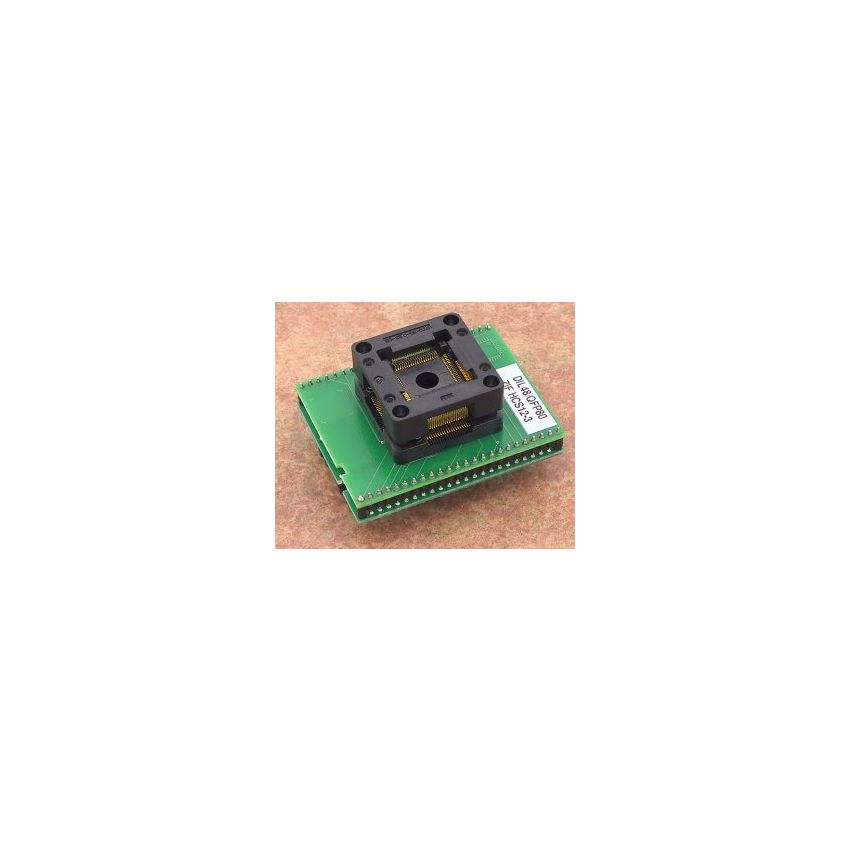

The special adapter with Ord. no. 70-0494 is designed for use with the Motorola MC9S12 family of microcontrollers, such as MC9S12NE64, in a QFP80 (Quad Flat Package) package. This adapter allows for convenient and reliable programming or testing of the MC9S12 microcontrollers.



The adapter features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, ensuring durable performance even with repeated use. The ZIF socket is of the OpenTop type, allowing for easy insertion and removal of the QFP80 package during programming or testing.



The bottom board of the adapter is designed with 2 rows of 2x24 pins, arranged in a square pattern with a pin spacing of 0.6x0.6mm, and rows spaced 600 mil apart. These pins are designed to provide efficient and reliable connectivity to the MC9S12 microcontrollers in a QFP80 package.



The adapter is made in Slovakia, adhering to high-quality standards to ensure reliable performance. The Ord. no. 70-0494 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



It is important to follow the manufacturer's guidelines for proper usage of the special adapter for Motorola MC9S12 microcontrollers, including adherence to the specified mechanical warranty for the ZIF socket, to ensure correct functionality and avoid potential damage to the microcontrollers or the adapter.
