DIL48/QFP80 ZIF HCS12-2

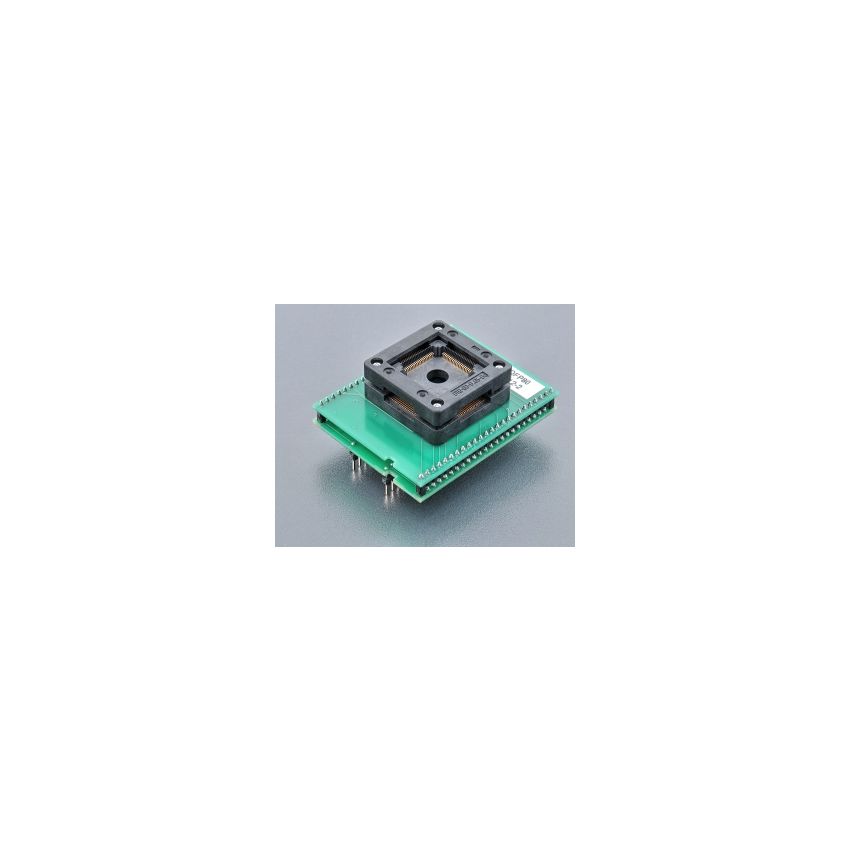

The special adapter with Ord. no. 70-0450 is designed for the Motorola MC9S12 family of microcontrollers, including the MC9S12DJ128, which come in a QFP80 package. This adapter is made in Slovakia to high-quality standards, ensuring reliable performance.



The socket on this adapter is a ZIF (Zero Insertion Force) socket with an OpenTop type design, allowing for easy insertion and removal of the MC9S12 microcontroller without applying excessive force. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, ensuring durability and longevity.



The bottom of the adapter features 2 rows of 2x 24 pins each, arranged in a square pattern with a pin spacing of 0.6x0.6mm and rows spacing of 600mil. This design allows for a reliable electrical connection to the QFP80 package of the Motorola MC9S12 microcontroller, enabling efficient testing, programming, or other operations.



The Ord. no. 70-0450 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to verify the compatibility of the adapter with the specific microcontroller and package before proceeding with any operations to ensure proper functionality and avoid potential damage to the microcontroller or the adapter.
