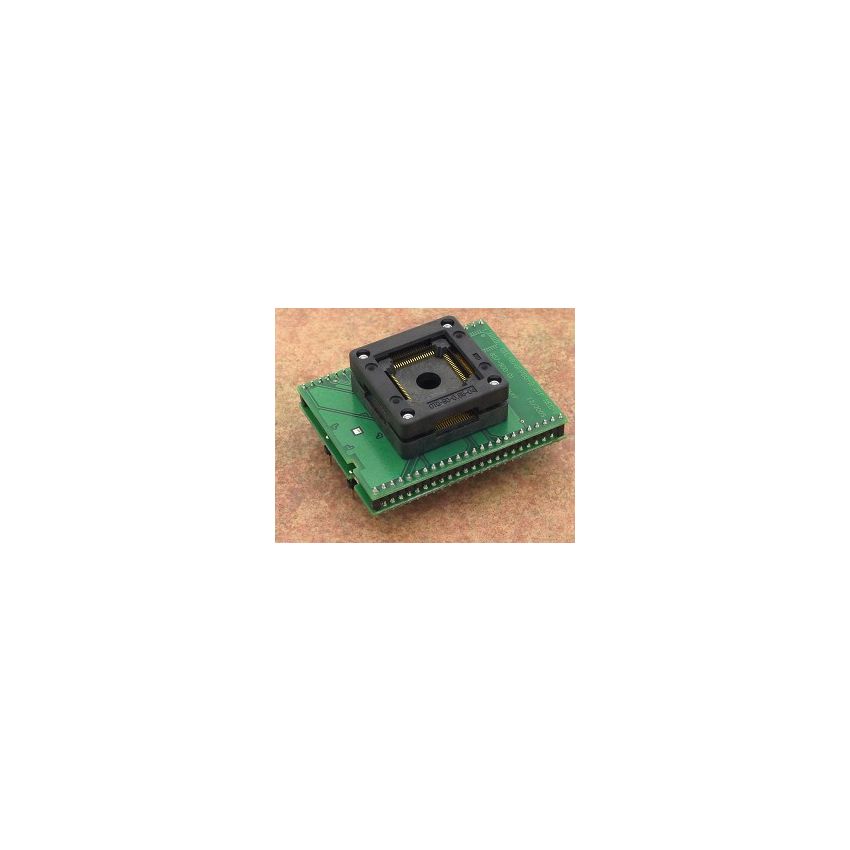

DIL48/QFP80-2 ZIF NEC-1

The special adapter is designed specifically for NEC 78K0/0S/0R, V850, V851 Flash MCU family devices in QFP80 package, such as uPD70F3306. It provides a reliable and efficient solution for programming and testing operations.



The ZIF socket used in the adapter has an operating (mechanical) warranty of 10,000 actuations, ensuring durability and reliability during repeated use. The ZIF socket is of the OpenTop type, which allows for easy insertion and removal of the QFP80 package, making it convenient for programming and testing operations.



The bottom board of the adapter has 2 rows of 24 pins arranged in a square pattern with a pitch of 0.6x0.6mm, and rows spacing of 600mil, providing a reliable connection to the QFP80 device. The special adapter is manufactured in Slovakia with high quality standards to ensure reliable performance.



The order number for this special adapter is 70-0857. It is designed to be compatible with NEC 78K0/0S/0R, V850, V851 Flash MCU family devices in QFP80 package, and is suitable for programming and testing operations related to these devices.
