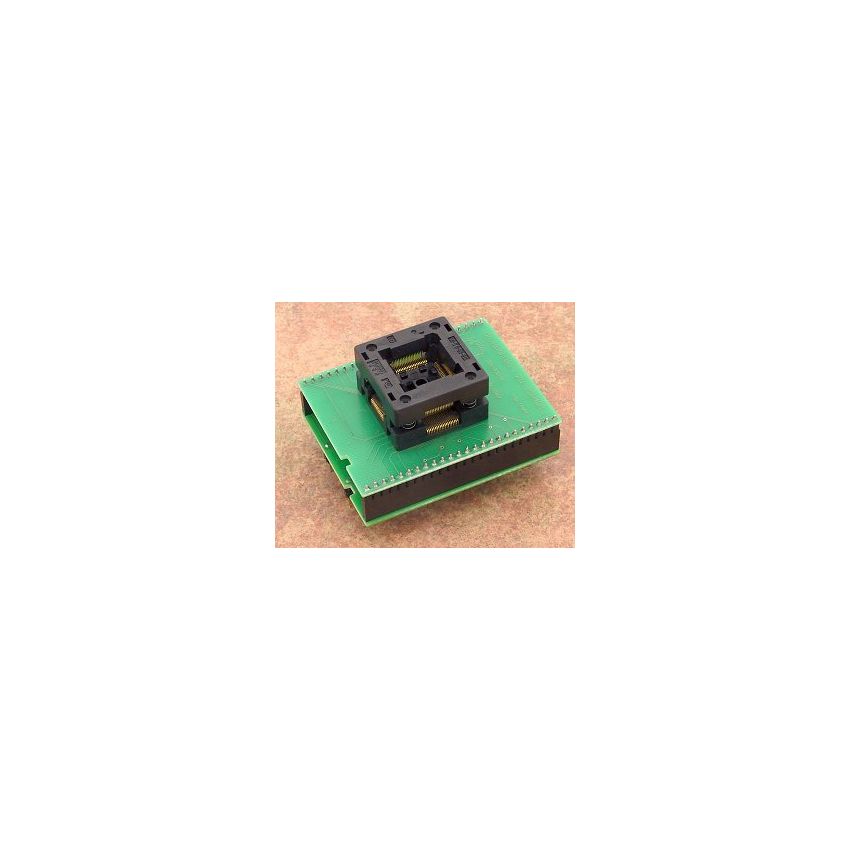

DIL48/QFP80-1 ZIF MSP430

The special adapter assigned for TI (TMS) MSP430F43x, MSP430FG43x, and other related families in QFP80 package is specifically designed for programming and testing operations of these specific TI microcontrollers. This adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations, ensuring durability and long-term performance.



The adapter is manufactured in Slovakia and is identified by Ord. no. 70-0318. It features a ZIF QFP80 socket in an OpenTop type configuration, allowing for easy insertion and removal of the TI microcontrollers. The bottom side of the adapter has 2 rows of 2x24 pins, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This design allows for efficient and secure connection of TI (TMS) MSP430F43x, MSP430FG43x, and other related families in QFP80 package for programming and testing purposes, making it a reliable solution for these specific TI microcontrollers.
