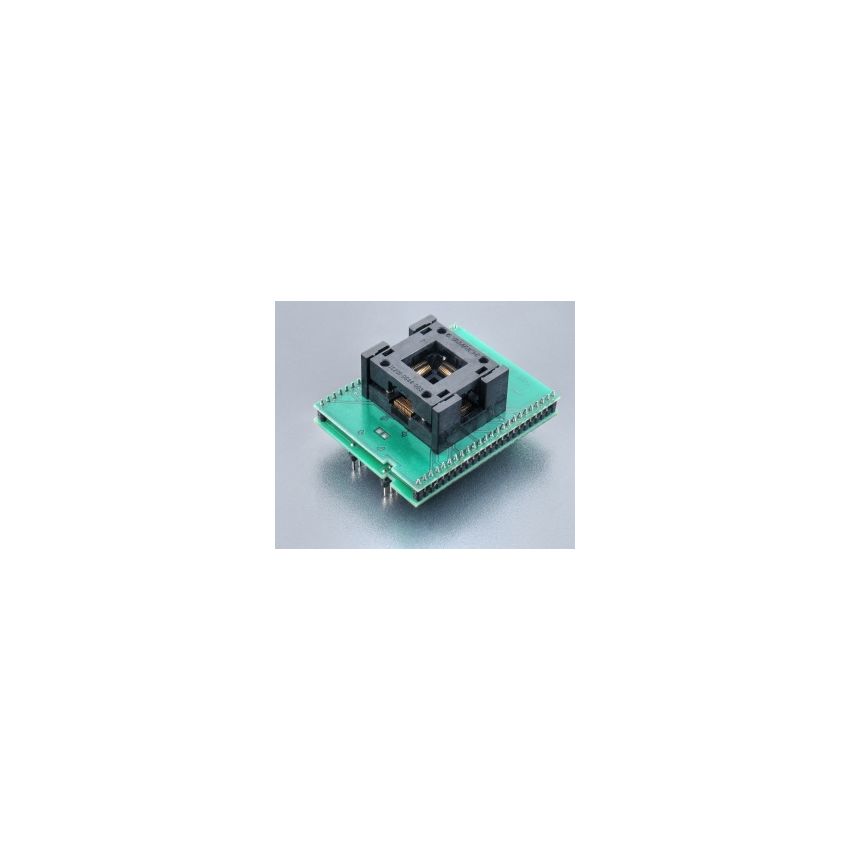

DIL48/QFP64 ZIF XE-1

The special adapter with Ord. no. 70-0454 is designed specifically for Xemixs XE88LC05A microcontroller in QFP64 package. It features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, ensuring durability and reliability during repeated use.



The ZIF socket on this adapter is a QFP64 (Quad Flat Package) type with an OpenTop design, making it easy to insert and remove the microcontroller for programming, testing, or other operations. The adapter is designed to accommodate XE88LC05A microcontroller in QFP64 package, which has 64 pins in a square pattern with a pin spacing of 0.6x0.6mm.



The bottom board of this adapter features 2 rows of 2x24 pins, arranged in a square pattern with a row spacing of 600mil. This provides a reliable electrical connection between the adapter and the target device, ensuring efficient communication and operation during testing or programming.



The adapter is made in Slovakia to high-quality standards, ensuring reliable performance and durability. The Ord. no. 70-0454 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to verify the compatibility of the adapter with the specific microcontroller and follow the manufacturer's guidelines for proper usage to ensure correct functionality and avoid potential damage to the devices or the adapter.
