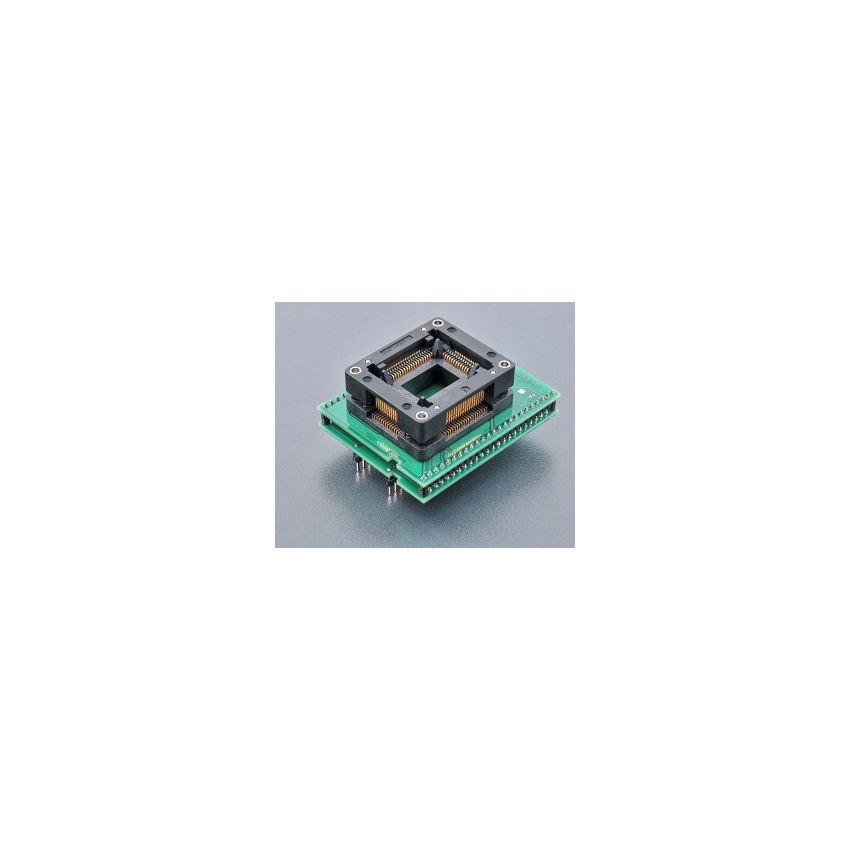

DIL48/QFP64 ZIF MB90F-2

The specialized adapter with Ord. no. 70-0382 is designed for use with Fujitsu/Spansion MB90F46x, MB90F49x, and MB90F56x microcontrollers in QFP64 package. It is specifically designed for programming and testing operations, allowing for easy insertion and removal of the microcontroller during these processes.



The adapter features a ZIF (Zero Insertion Force) socket with an OpenTop type design, which allows for convenient placement and removal of the microcontroller without applying excessive force. The ZIF socket has a mechanical warranty of 10,000 actuations, ensuring durability and reliability in professional use.



The bottom board of the adapter has 2 rows of 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This configuration is designed to match the pinout of Fujitsu/Spansion MB90F46x, MB90F49x, and MB90F56x microcontrollers in QFP64 package, ensuring accurate and reliable connections between the adapter and the target device during programming and testing operations.



The adapter is supported from PG4UW software version 3.16 and above, providing compatibility with the latest software versions and ensuring seamless integration into the programming and testing workflow.



The adapter is made in Slovakia using high-quality materials and manufacturing processes, ensuring its quality and performance. The Ord. no. 70-0382 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



Please note that this adapter is designed specifically for use with Fujitsu/Spansion MB90F46x, MB90F49x, and MB90F56x microcontrollers in QFP64 package, and may not be suitable for other devices or packages. It is important to verify the compatibility of the adapter with the specific microcontroller you intend to use before proceeding with programming or testing operations.
