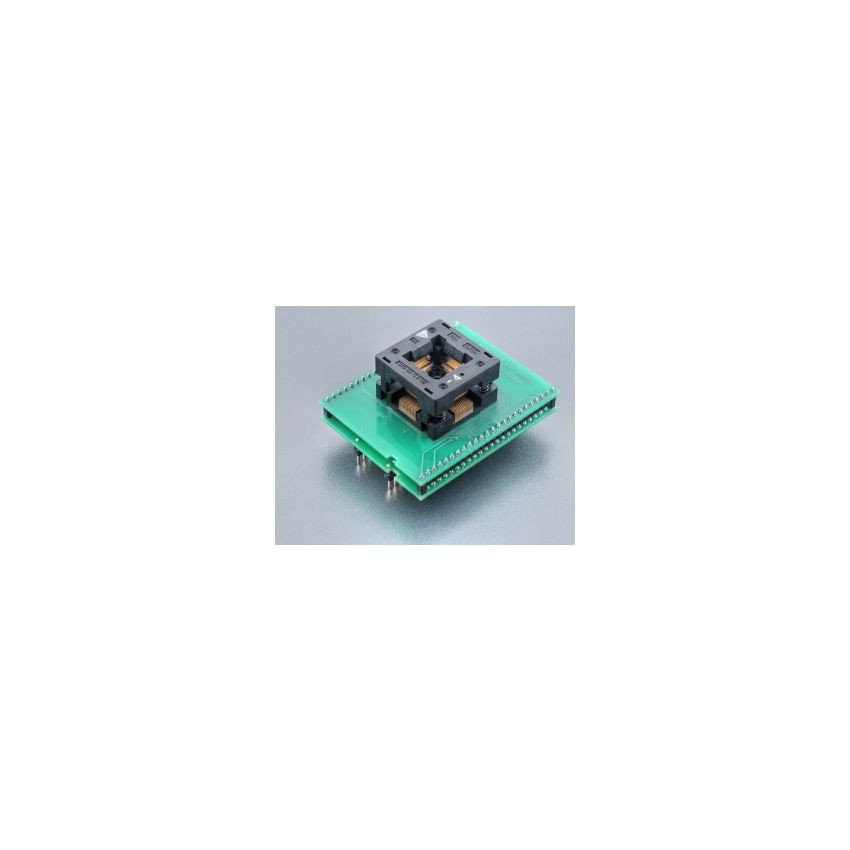

DIL48/QFP64 ZIF ARM-1

The special adapter with Ord. no. 70-0407 is specifically designed for use with Atmel AT91SAM family microcontrollers in LQFP64 (Low Quad Flat Package) package. It features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, ensuring durability and reliability during repeated usage.



The ZIF socket on this adapter is specifically designed for QFP64 packages and features an OpenTop type design, which allows for easy and secure insertion and removal of the target device during programming or testing operations. The ZIF socket is designed to provide a reliable electrical connection without risking damage to the device or the adapter.



The bottom board of the adapter features 2 rows of 2x 24 pins each, arranged in a square pattern with a pin spacing of 0.6x0.6mm, and rows spacing of 600mil. These pins are designed to connect with the corresponding pins on the target AT91SAM microcontroller, providing a reliable electrical connection for programming or testing operations.



The adapter is made in Slovakia, ensuring high-quality manufacturing processes and materials. The Ord. no. 70-0407 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to verify the compatibility of the Atmel AT91SAM microcontrollers in LQFP64 package with the ZIF socket and the overall adapter design before proceeding with programming or testing operations.
