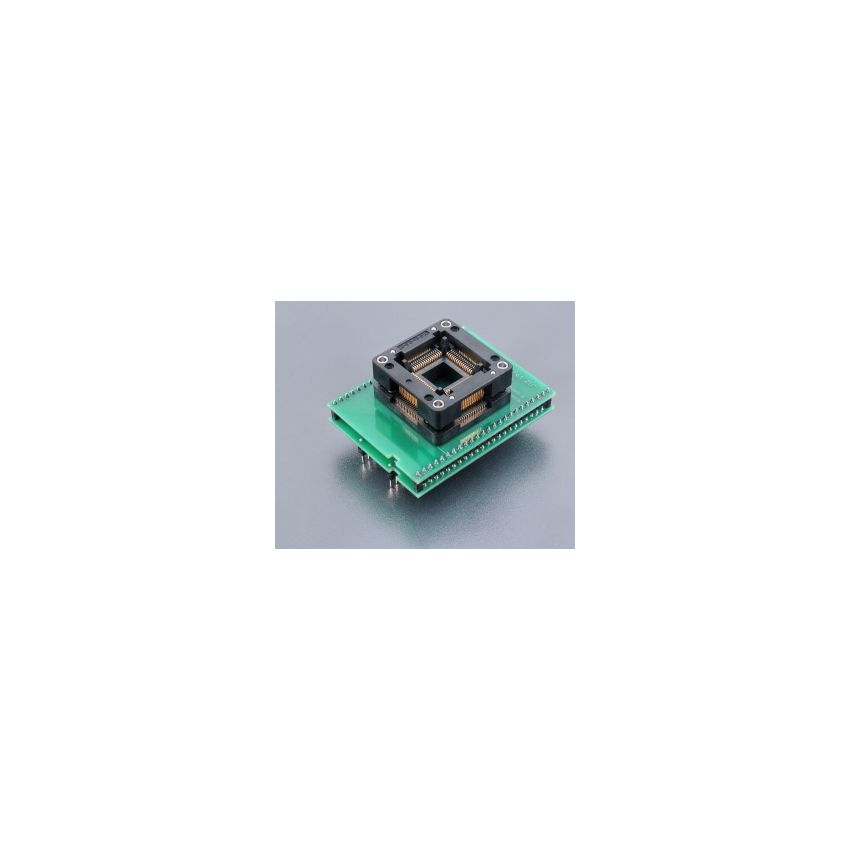

DIL48/QFP64 ZIF 68HC-1

The special adapter is designed for use with Motorola 68HC11xxx series microcontrollers that come in a QFP64 (Quad Flat Package) package. It is specifically tailored for programming and testing Motorola 68HC11xxx series chips, providing a reliable and convenient solution.



The special adapter features a ZIF (Zero Insertion Force) socket with a QFP64 OpenTop type design, which allows for easy insertion and removal of the Motorola 68HC11xxx series chips during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The special adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for Motorola 68HC11xxx series chips in QFP64 package, ensuring a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0089. It provides a reliable solution for programming and testing Motorola 68HC11xxx series chips in QFP64 package, offering durability, compatibility, and ease of use for programming needs.
