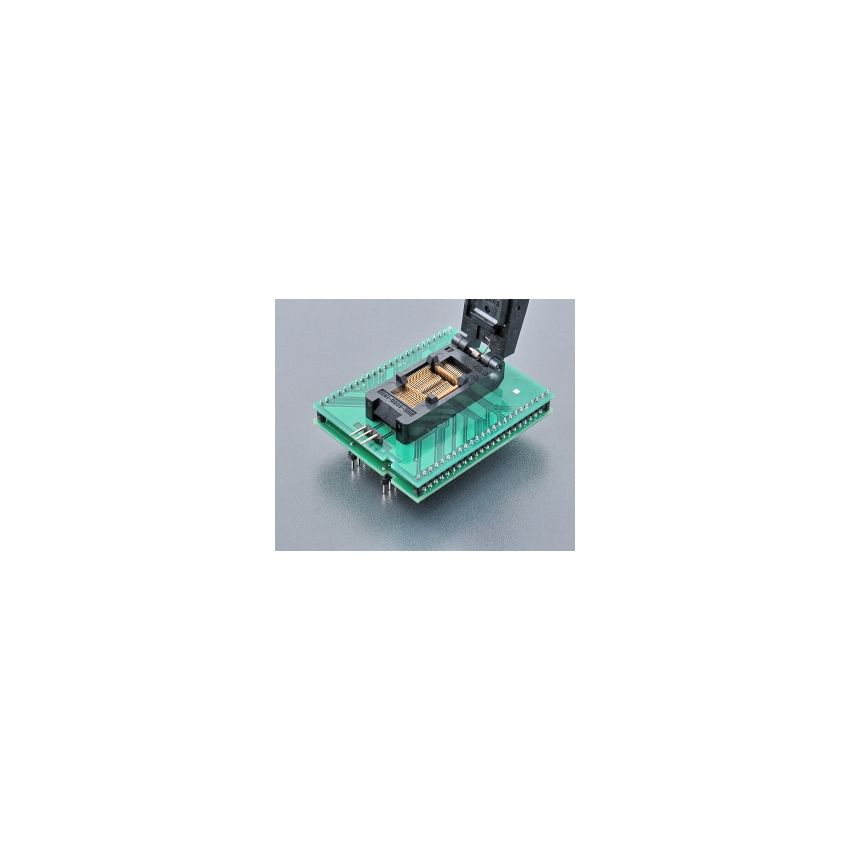

DIL48/QFP64-2 ZIF-CS NEC-2

The special adapter with Ord. no. 70-0480 is specifically designed for NEC 78K0/0S/0R Flash MCU family in QFP64 package, such as uPD78F0533. This adapter provides a convenient solution for programming or testing these devices with ease and reliability.



The ZIF (Zero Insertion Force) socket of this adapter has a mechanical warranty of 10,000 actuations, ensuring durability and reliability during repeated use. It is designed to securely hold the QFP64 package during programming or testing operations, minimizing the risk of damage to the devices or the adapter.



The adapter is made in Slovakia, adhering to high-quality standards to ensure reliable performance. The Ord. no. 70-0480 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



The ZIF socket of the adapter is of ClamShell type, which allows easy insertion and removal of the QFP64 package without the need for excessive force. The bottom board of the adapter features 2 rows of 2x24 pins, arranged in a square pattern with a pin spacing of 0.6x0.6mm and a row spacing of 600mil. These pins are designed to provide a secure and reliable connection to the QFP64 package, ensuring efficient programming or testing operations.



It is important to follow the manufacturer's guidelines for proper usage of the adapter to ensure correct functionality and avoid potential damage to the devices or the adapter.
