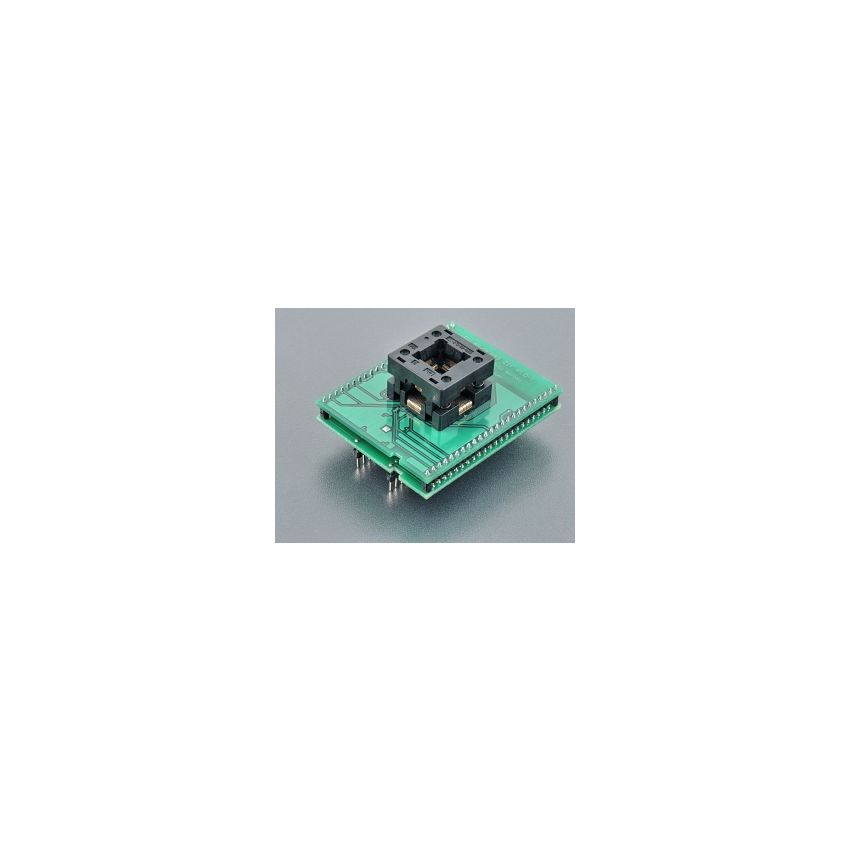

DIL48/QFP48 ZIF PLD-1

The special adapter is designed for use with Lattice Power Manager II devices, specifically those housed in TQFP48 package. This adapter is ideal for programming and debugging Lattice Power Manager II devices in development and testing environments. The ZIF socket of the adapter comes with an operating (mechanical) warranty of 10,000 actuations, ensuring durability and reliable performance during repeated usage. The adapter is manufactured in Slovakia and is identified by the order number (Ord. no.) 70-0792.

The socket type of the adapter is ZIF QFP48, with an OpenTop type configuration for easy insertion and removal of the target device. The bottom board of the adapter features a 2-row configuration with 2x24 pins, square in shape, and with a pin pitch of 0.6x0.6mm, and rows spacing of 600mil.
