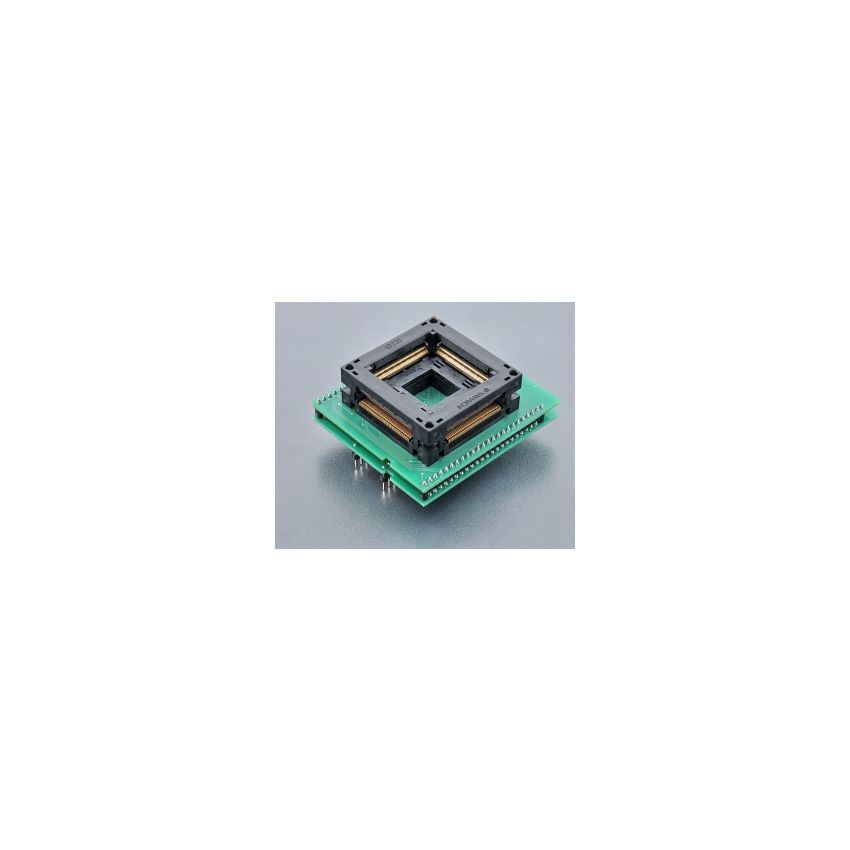

DIL48/QFP208 ZIF PLD-3

The special adapter with Ord. no. 70-0589 is specifically designed for CPLD (Complex Programmable Logic Device) devices from Xilinx, including XC9500, XC9500XL, and XC9500XV families, in the QFP208 package. It features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations, ensuring durability and reliable performance during repeated use.



The ZIF socket on this adapter is of the OpenTop type, allowing for easy insertion and removal of the QFP208 package without applying excessive force. The bottom part of the adapter features 2 rows of 24 pins each, arranged in a square pattern with a pin pitch of 0.6x0.6mm and row spacing of 600mil.



This adapter is made in Slovakia and is a high-quality solution for programming or testing Xilinx CPLD devices in QFP208 package. It is designed for ease of use, durability, and reliable performance, making it an ideal choice for professional use in electronic device programming or testing applications.
