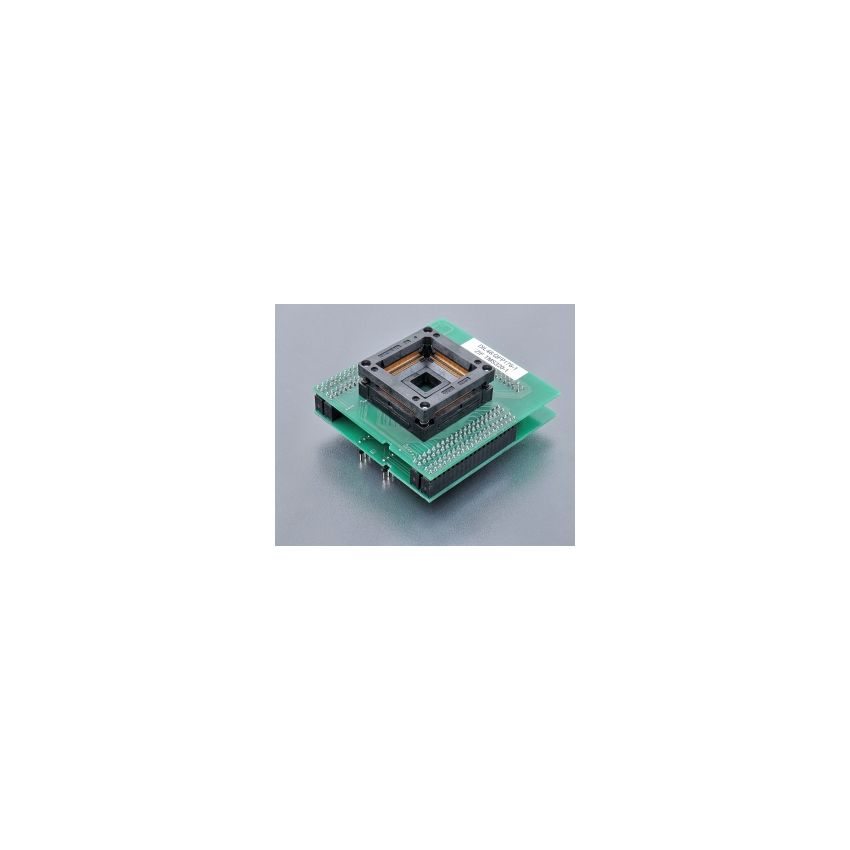

DIL48/QFP176-1 ZIF TMS320-1

The special adapter with order number 70-0728 is designed for DSPs (Digital Signal Processors) from the TMS320 family in QFP176 (Quad Flat Package) package. It features a ZIF (Zero Insertion Force) socket with an OpenTop type design, allowing for easy insertion and removal of the DSP during programming and testing processes.



The ZIF socket on this adapter has a mechanical warranty of 10,000 actuations, ensuring reliable performance during repeated use. This warranty guarantees the durability and longevity of the ZIF socket, making it suitable for regular programming and testing operations.



The special adapter is manufactured in Slovakia to high-quality standards, ensuring reliable performance and durability. The order number for this adapter is 70-0728. The bottom part of the adapter features 2 rows of 2x24 pins arranged in a square configuration, with a pin pitch of 0.6x0.6mm and row spacing of 600mil. This configuration provides precise and secure connections to the programming or testing equipment, ensuring accurate and efficient programming and testing of DSPs in QFP176 package.



With its ZIF socket with OpenTop design, mechanical warranty of 10,000 actuations, and compatibility with DSPs from the TMS320 family in QFP176 package, this special adapter offers a reliable and efficient solution for programming and testing of DSPs in the TMS320 family.
