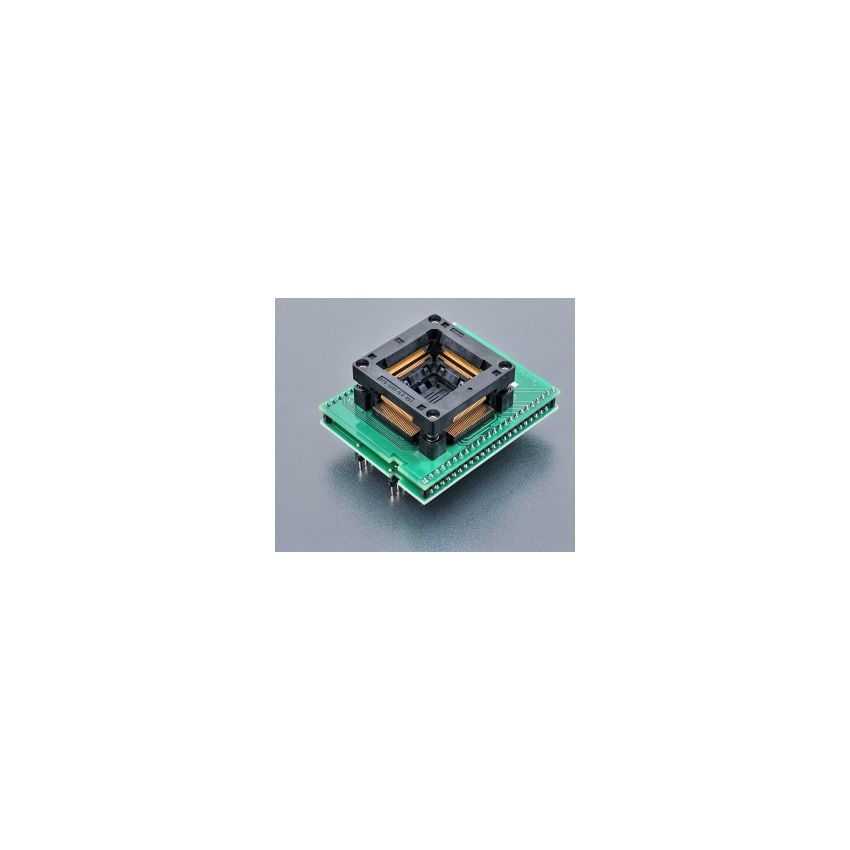

DIL48/QFP144 ZIF PLD-8

The specialized adapter is designed for Actel/Microsemi ProASIC3 devices in TQFP144 package, providing a reliable and efficient solution for programming and testing these devices. The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations, ensuring durability and longevity.



The adapter is supported from PG4UW software version 3.23j, ensuring compatibility and seamless integration with programming software. It is manufactured in Slovakia, known for its high-quality manufacturing standards, ensuring reliability and performance. The order number for this specialized adapter is 70-0896, which can be used for easy identification and ordering.



The ZIF socket on the adapter is of OpenTop type, providing a convenient way to insert and remove the TQFP144 package. The OpenTop design allows for easy access to the device for programming and testing, making it a user-friendly solution.



The bottom board of the adapter features 2x24 pins arranged in a square pattern with a pitch of 0.6x0.6mm, and rows spacing of 600mil. This provides a reliable connection to the target device and ensures accurate and efficient operations.
