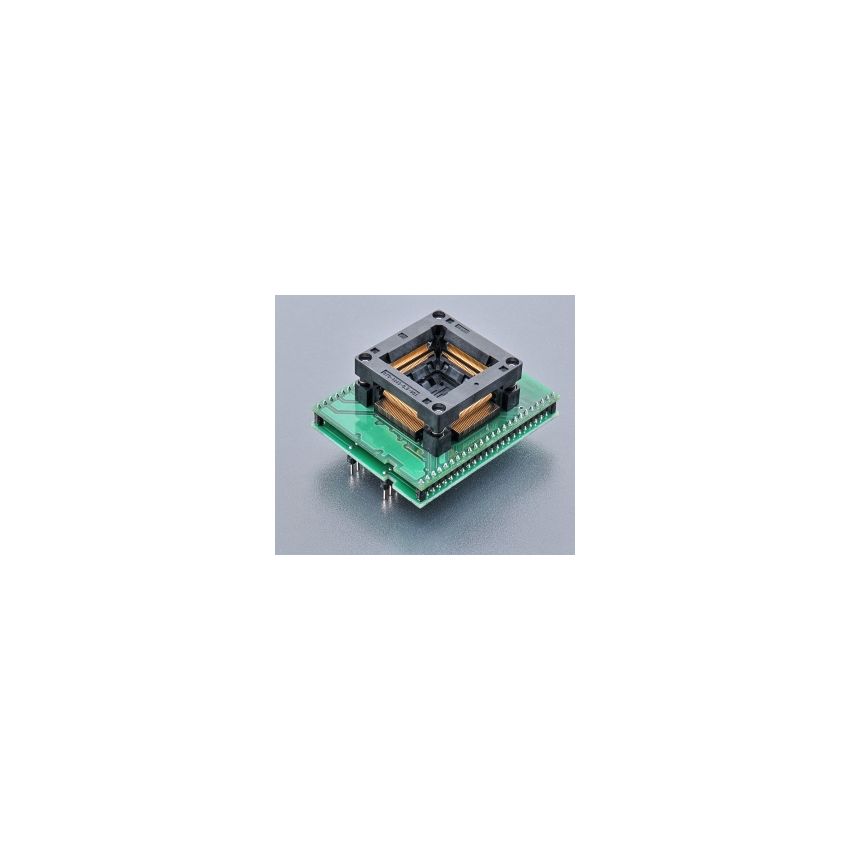

DIL48/QFP144 ZIF PLD-6

The special adapter with Ord. no. 70-0627 is designed for use with Lattice MachXO and LA-MachXO FPGA/CPLD (Complex Programmable Logic Device) devices in TQFP144 (Thin Quad Flat Pack) package. It features a ZIF (Zero Insertion Force) socket with an OpenTop type design, specifically designed for TQFP144 packages.



The ZIF socket on this adapter has an operating (mechanical) warranty of 10,000 actuations, providing reliable performance for multiple insertions and removals of TQFP144 packages. The adapter is made in Slovakia, known for its high-quality manufacturing standards, ensuring durability and reliability.



The Ord. no. 70-0627 adapter has a ZIF QFP144 socket on the top board, and the bottom board features 2 rows of 2x24 pins arranged in a square pattern with a pin pitch of 0.6x0.6mm and rows spacing of 600mil. This configuration allows for a secure and efficient connection between the adapter and the TQFP144 package.



This special adapter is designed specifically for use with Lattice MachXO and LA-MachXO FPGA/CPLD devices in TQFP144 package, making it suitable for programming or testing applications involving these devices. With its high-quality construction, reliable performance, and compatibility with TQFP144 packages, this special adapter is a reliable solution for working with Lattice MachXO and LA-MachXO FPGA/CPLD devices in TQFP144 package.
