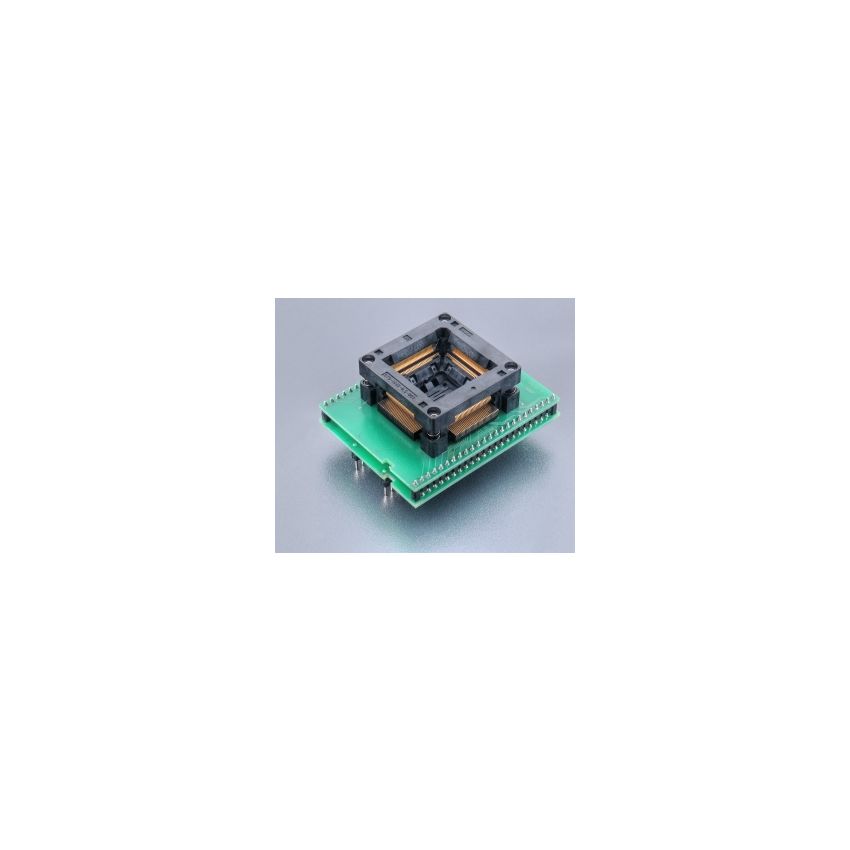

DIL48/QFP144 ZIF PLD-4

The special adapter with Ord. no. 70-0444 is designed specifically for use with CPLD devices, particularly Xilinx CoolRunner XPLA3, in a TQFP144 package. The adapter is made in Slovakia and is constructed to high-quality standards to ensure reliable performance.



The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations, providing durability and longevity for repeated device insertion and removal operations. The ZIF socket is of the OpenTop type, making it easy to insert and remove the CPLD device without applying excessive force or risk of damage.



The bottom board of the adapter has 2 rows of 2x 24 pins each, arranged in a square pattern with a pin spacing of 0.6x0.6mm and rows spacing of 600mil. These pins are designed to provide a reliable electrical connection to the TQFP144 package of the Xilinx CoolRunner XPLA3 CPLD device.



The Ord. no. 70-0444 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to verify the compatibility of the adapter with the specific CPLD device model and package type before proceeding with programming or testing operations to ensure proper functionality and avoid potential damage to the CPLD device or the adapter.
