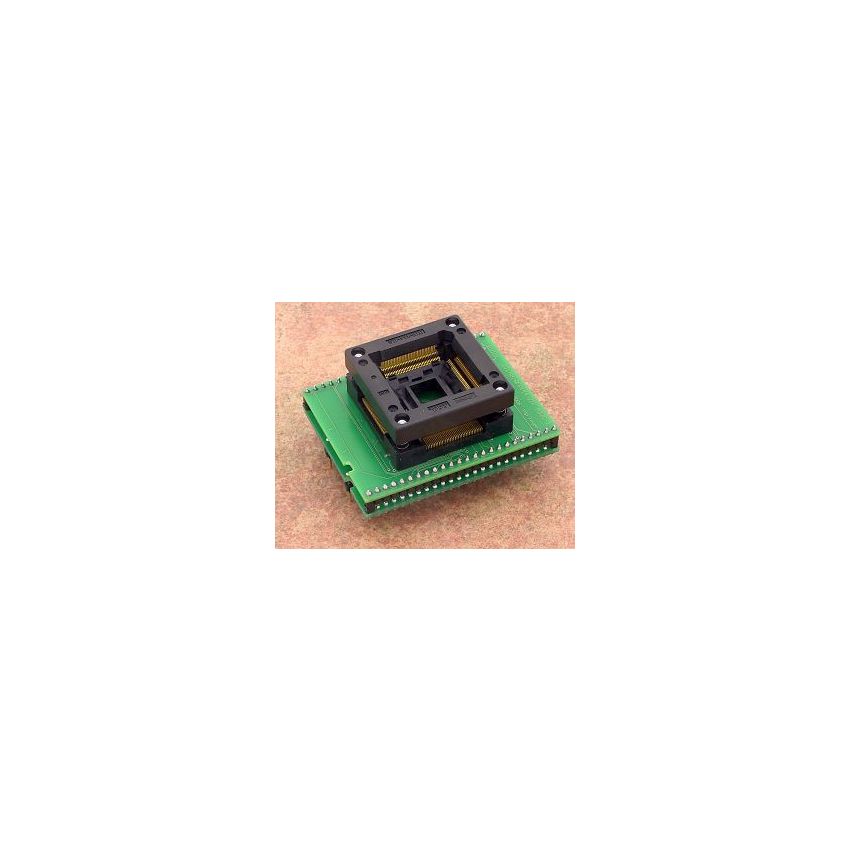

DIL48/QFP144 ZIF M32C-1

The special adapter with Ord. no. 70-0486 is specifically designed for M32C microcontrollers in QFP144 package. The M32C microcontroller is a popular microcontroller series commonly used in various applications.



The ZIF (Zero Insertion Force) socket on this adapter is of OpenTop type, providing easy and convenient insertion and removal of the microcontroller for programming or testing operations. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, ensuring reliable performance for repeated use.



The adapter is made in Slovakia, adhering to high-quality standards to ensure reliable and durable performance. The Ord. no. 70-0486 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



The bottom of the adapter features 2 rows of 2x24 pins, arranged in a square pattern with a spacing of 0.6x0.6mm, and the rows are spaced 600 mil apart. These pins are designed to provide efficient and reliable connectivity to the M32C microcontroller in QFP144 package during programming or testing operations.



It is important to follow the manufacturer's guidelines for proper usage of the special adapter to ensure correct functionality and avoid potential damage to the microcontroller or the adapter. The operating (mechanical) warranty of 10,000 actuations provides assurance of the durability and reliability of the ZIF socket, making it suitable for multiple uses in professional environments.
