DIL48/QFP144 ZIF H8S-4

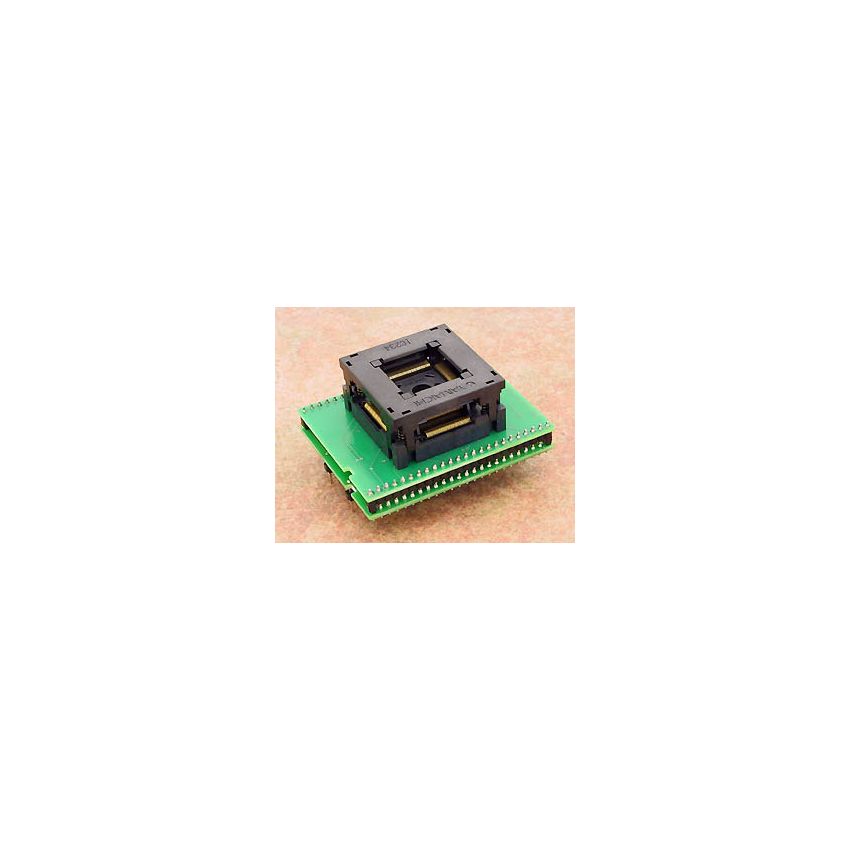

The special adapter with Ord. no. 70-0527 is specifically designed for Renesas (Hitachi) R4F2116 microcontrollers in QFP144 (Quad Flat Package) package. It features a ZIF (Zero Insertion Force) socket with an OpenTop type design, allowing for easy insertion and removal of the QFP144 package without the need for additional tools.



The ZIF socket on this adapter has an operating (mechanical) warranty of 10,000 actuations, which means it is designed to withstand a limited number of actuations before potential wear and tear may occur. It is important to consider this limitation when using the adapter in programming or testing applications.



The special adapter is made in Slovakia, adhering to high-quality manufacturing standards to ensure reliable performance. The Ord. no. 70-0527 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



The ZIF socket on the adapter is designed to accommodate QFP144 packages, specifically from the Renesas (Hitachi) R4F2116 series. The QFP144 package has a square shape with 0.6x0.6mm pin pitch, and the adapter's bottom board has 2 rows of 2x24 pins with a row spacing of 600mil (0.6 inch). This allows for a secure and reliable connection between the adapter and the QFP144 package during programming or testing, ensuring efficient communication and accurate results.
