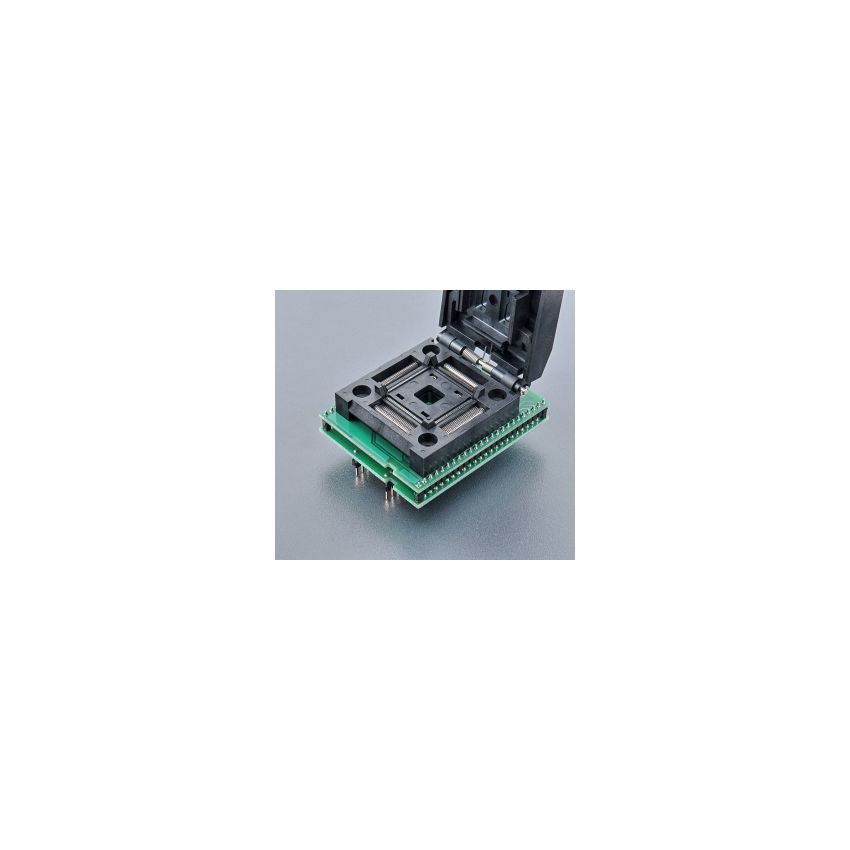

DIL48/QFP144 ZIF-CS H8S-7

The special adapter is designed for Renesas (Hitachi) R4F246x devices in QFP144 package, providing a reliable and efficient solution for programming and testing these devices. The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations, ensuring durability and longevity.



The adapter is manufactured in Slovakia, known for its high-quality manufacturing standards, ensuring reliability and performance. The order number for this special adapter is 70-0895, which can be used for easy identification and ordering.



The ZIF socket on the adapter is of Clamshell type, providing a secure and convenient way to insert and remove the QFP144 package. The clamshell design allows for easy access to the device for programming and testing, making it a user-friendly solution.



The bottom board of the adapter features 2x24 pins arranged in a square pattern with a pitch of 0.6x0.6mm, and rows spacing of 600mil. This provides a reliable connection to the target device and ensures accurate and efficient operations.



In summary, the special adapter is designed for Renesas (Hitachi) R4F246x devices in QFP144 package and features a ZIF socket with a mechanical warranty of 10,000 actuations. It is made in Slovakia and has an order number of 70-0895. The bottom board of the adapter features 2x24 pins arranged in a square pattern.
