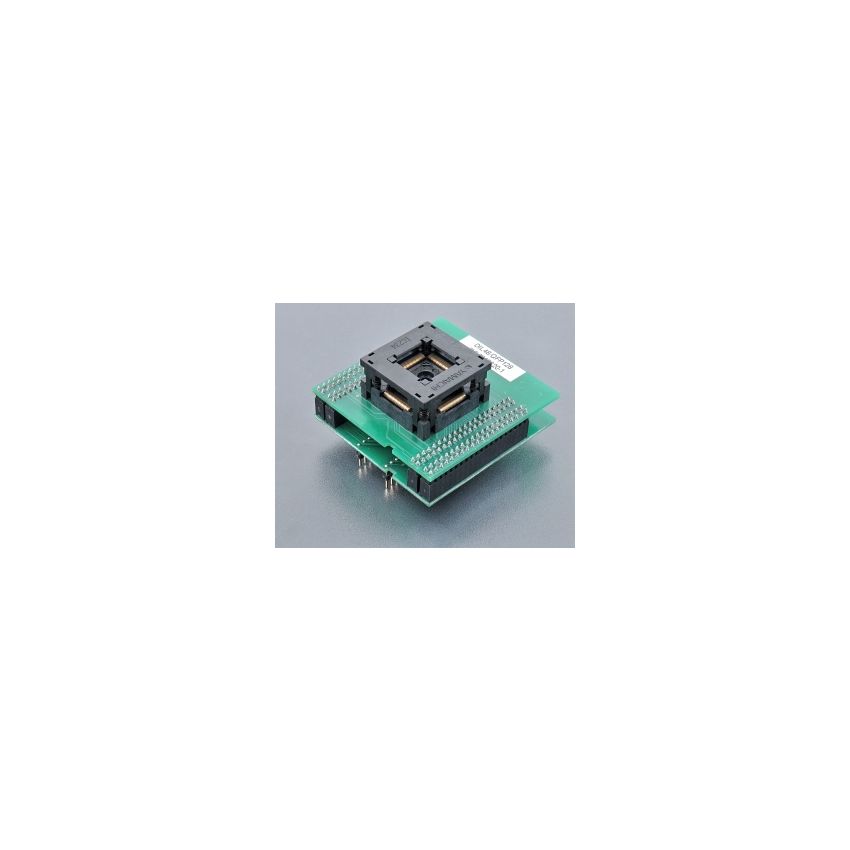

DIL48/QFP128 ZIF TMS320-1

The special adapter with order number 70-0744 is designed for DSPs (Digital Signal Processors) from the TMS320 family, specifically in QFP128 package. It features a ZIF (Zero Insertion Force) socket on the top board that is designed to accept QFP128 packages, and has an operating (mechanical) warranty of 10,000 actuations, ensuring its durability and long-term performance.



The ZIF socket on this top board is of OpenTop type, making it easy to insert and remove QFP128 packages during programming and testing operations. The bottom board of the adapter features 2 rows of pins, with 2x24 pins in each row, arranged in a square pattern with a pin pitch of 0.6x0.6mm, and row spacing of 600 mil (15.24mm).



This special adapter is manufactured in Slovakia to high-quality standards, ensuring reliability and performance. The order number for this adapter is 70-0744, and it is designed specifically for use with DSPs from the TMS320 family in QFP128 package. It provides a reliable and efficient solution for programming and testing of these DSPs, and other compatible devices, with its ZIF socket's high actuation warranty and open-top design.
