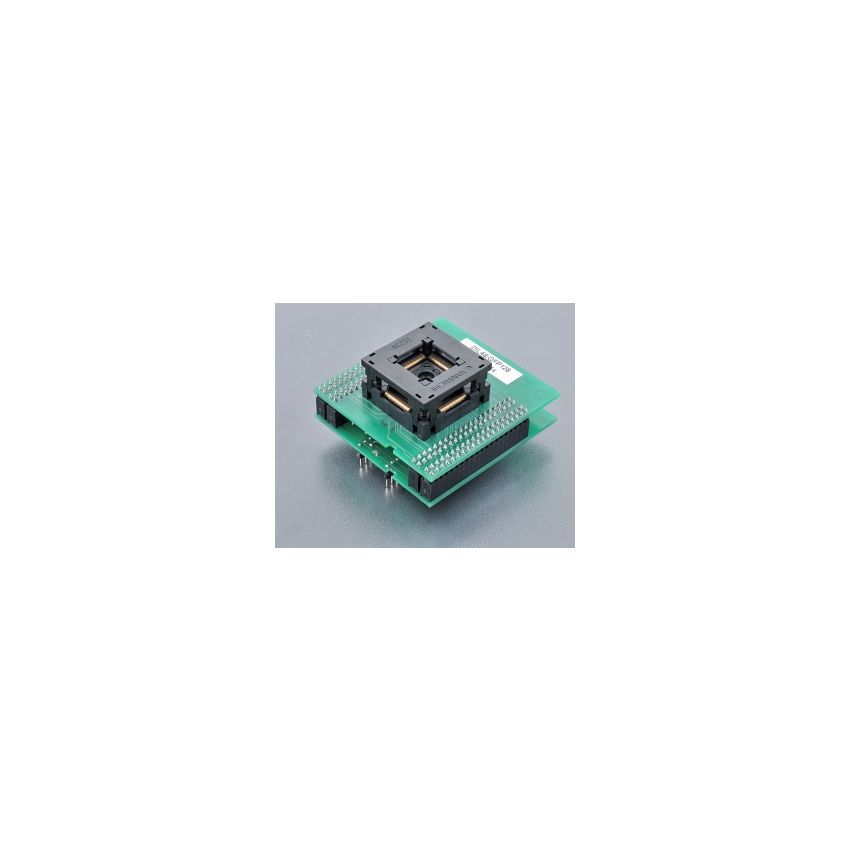

DIL48/QFP128 ZIF STR91x

The special adapter with order number 70-0696 is specifically designed for devices in the STR91x family in LQFP128 package, offering a reliable solution for programming and testing these devices. The adapter features a high-quality ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations, ensuring long-lasting and dependable performance.



The ZIF socket on the adapter is of QFP128 type and is of OpenTop design, allowing easy insertion and removal of devices during programming and testing. The bottom board of the adapter features 2 rows of 2x24 pins in a square configuration, with a pin pitch of 0.6x0.6mm and row spacing of 600mil. This configuration is specifically designed to be compatible with LQFP128 packages of STR91x family devices, providing a secure and precise connection for programming and testing purposes.



The adapter is made in Slovakia to high manufacturing standards, ensuring quality and reliability. It is designed as a special adapter dedicated to STR91x family devices in LQFP128 package, with a mechanical warranty of 10,000 actuations for the ZIF socket. The order number for this special adapter is 70-0696.
