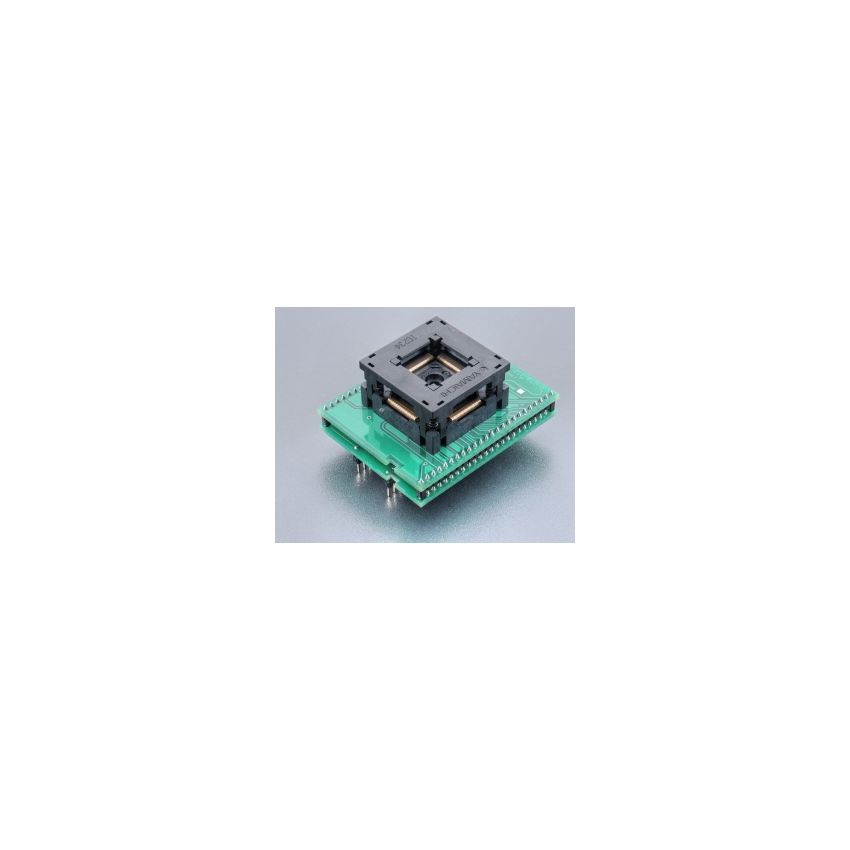

DIL48/QFP128 ZIF PLD-1

The specialized adapter with Ord. no. 70-0495 is designed for use with CPLD (Complex Programmable Logic Device) devices from Lattice, specifically the ispLSI 5000VE series, in a TQFP128 (Thin Quad Flat Package) package. This adapter allows for efficient and reliable programming or testing of the Lattice CPLD devices.



The adapter features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, ensuring durability and long-lasting performance even with repeated use. The ZIF socket is of the OpenTop type, allowing for easy insertion and removal of the TQFP128 package during programming or testing.



The bottom board of the adapter is designed with 2 rows of 2x24 pins, arranged in a square pattern with a pin spacing of 0.6x0.6mm, and rows spaced 600 mil apart. These pins are designed to provide efficient and reliable connectivity to the Lattice CPLD devices in a TQFP128 package.



The adapter is supported from PG4UW software version 3.31q, which indicates compatibility with the specific software version for programming or testing the Lattice ispLSI 5000VE CPLD devices.



The adapter is made in Slovakia, adhering to high-quality standards to ensure reliable performance. The Ord. no. 70-0495 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



It is important to follow the manufacturer's guidelines for proper usage of the specialized adapter for Lattice ispLSI 5000VE CPLD devices, including adherence to the specified mechanical warranty for the ZIF socket, to ensure correct functionality and avoid potential damage to the CPLD devices or the adapter.
