DIL48/QFP128 ZIF HD64-1

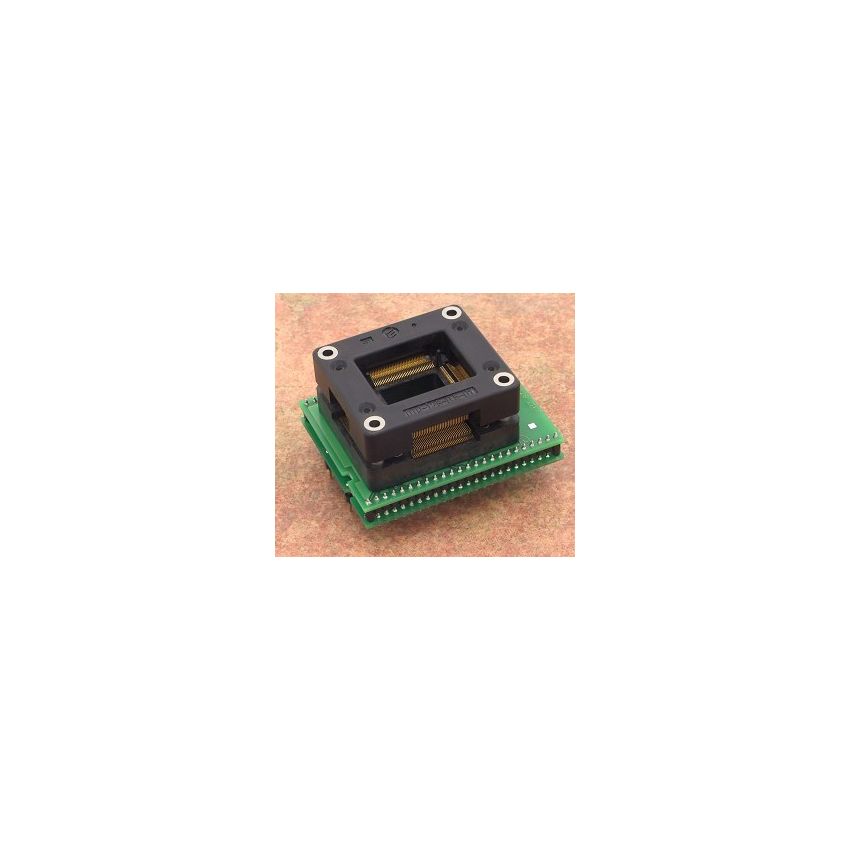

The special adapter with Ord. no. 70-1042 is designed for use with Renesas (Hitachi) HD64F263xxF devices in a QFP128 (Quad Flat Package) package. It features a ZIF (Zero Insertion Force) socket that is of the OpenTop type, allowing for easy insertion and removal of the QFP128 package without the need for additional tools.



The ZIF socket on this special adapter is designed with a mechanical warranty of 10,000 actuations, indicating its durability and reliability in repeated usage. It is made in Slovakia, ensuring quality manufacturing standards.



The bottom board of the adapter features 2x24 square pins with a size of 0.6x0.6mm and a row spacing of 600mil. These pins are designed to provide proper alignment and electrical connectivity between the adapter and the device being tested or programmed.
