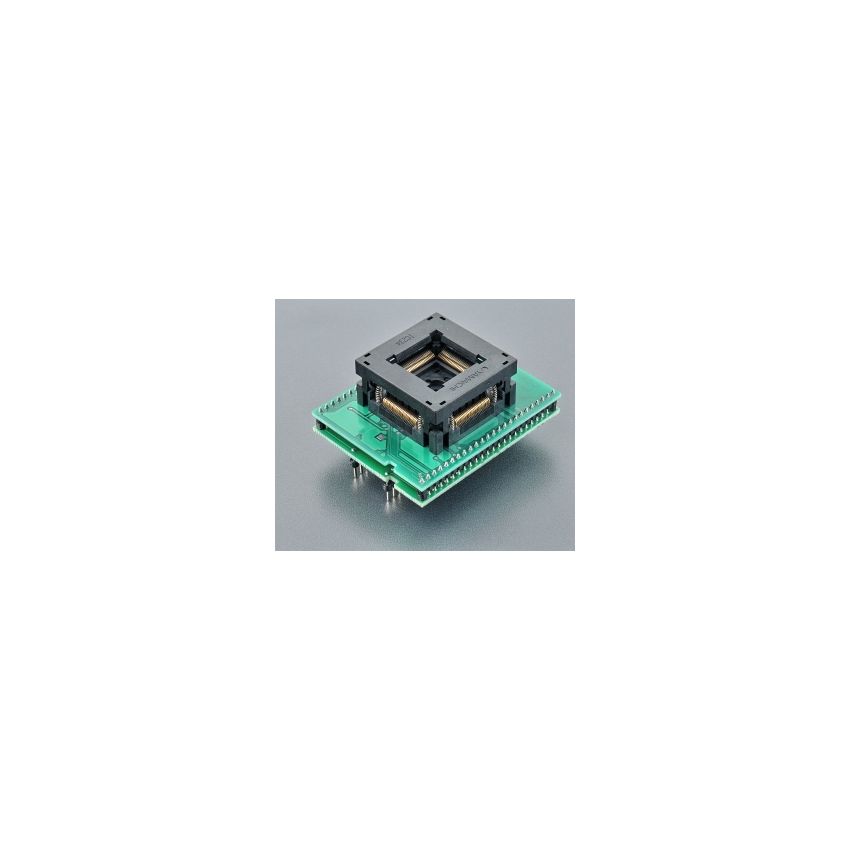

DIL48/QFP120 ZIF MB91-2

The special adapter with Ord. no. 70-1073 is designed for use with Fujitsu MB91F36x devices in LQFP120 package. This adapter is manufactured in Slovakia and is built to meet high-quality standards for durability and reliable performance.



The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations. The ZIF socket allows for easy and secure insertion and removal of the target Fujitsu MB91F36x device, making it convenient for development, testing, and programming purposes.



The socket type on this adapter is OpenTop, which provides easy access to the pins of the target device for testing and programming. The OpenTop design allows for the top of the device to be exposed, allowing for convenient probing or testing of the pins without removing the device from the adapter.



The bottom board of the adapter features 2x24 square pins with a size of 0.6x0.6mm and a row spacing of 600mil. These pins are designed to provide accurate alignment and electrical connectivity with the target Fujitsu MB91F36x device in the LQFP120 package.
