DIL48/QFP120 ZIF HD64F-1

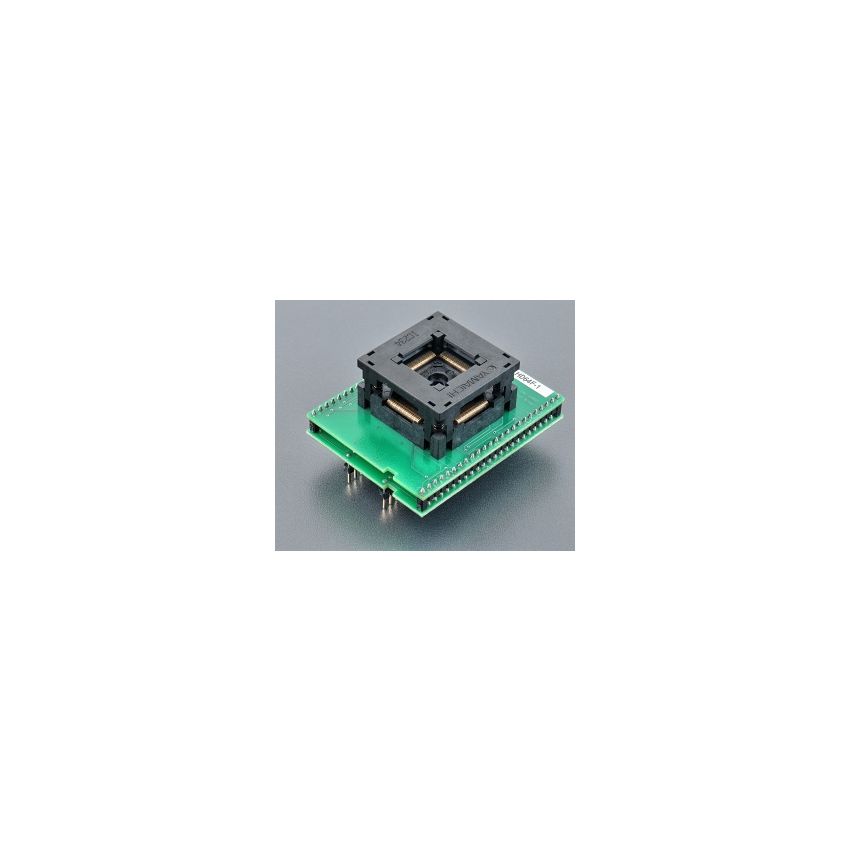

The special adapter with Ord. no. 70-0396 is designed for use with Renesas (Hitachi) HD64F2215TE microcontroller in a TQFP120 package. It is made in Slovakia, ensuring high-quality manufacturing processes and materials.



The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations, providing reliable and secure connections for repeated insertions and removals of the microcontroller during programming, testing, or other operations. The ZIF socket is of OpenTop type, allowing for easy placement and removal of the microcontroller.



The bottom board of the adapter has 2 rows of 2x 24 pins each, arranged in a square pattern with a pin spacing of 0.6x0.6mm and a rows spacing of 600mil. This configuration is designed to match the pinout and dimensions of the Renesas (Hitachi) HD64F2215TE microcontroller in a TQFP120 package, ensuring proper alignment and connectivity.



The Ord. no. 70-0396 serves as a unique identifier for this specific special adapter, making it easy to identify and track in a professional environment. Please note that this adapter is designed specifically for use with the Renesas (Hitachi) HD64F2215TE microcontroller in a TQFP120 package, and may not be suitable for other devices or package configurations. It is important to verify the compatibility of the adapter with the specific microcontroller you intend to use before proceeding with programming or testing operations.
