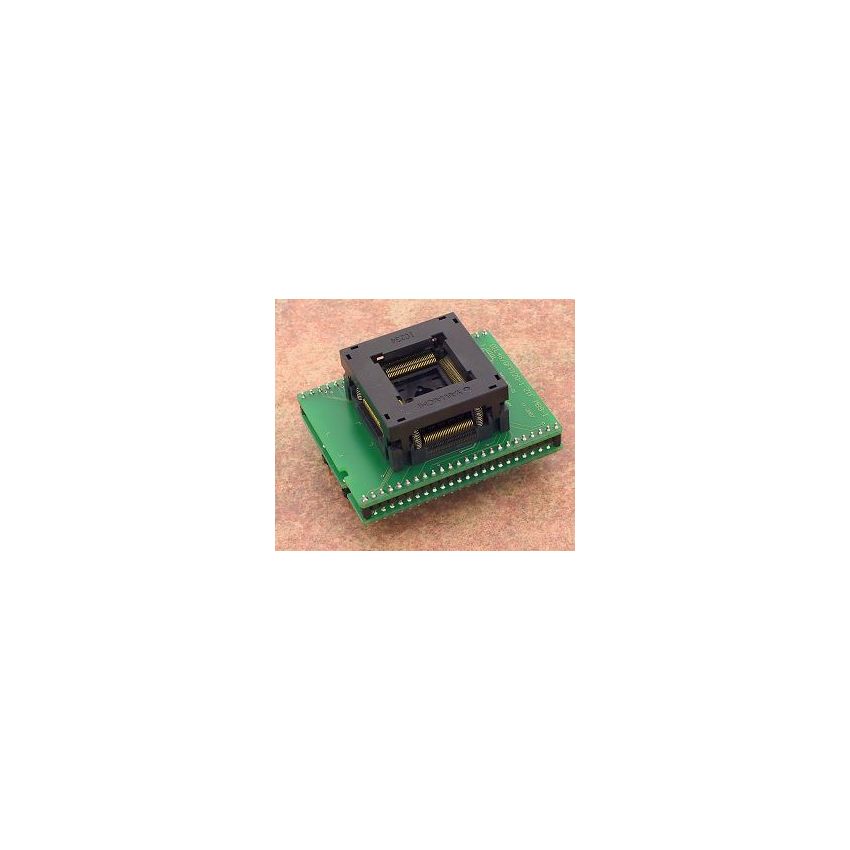

DIL48/QFP120-1 ZIF MB9-1

The special adapter is designed for use with Fujitsu MB96F38x microcontrollers in LQFP120 (Low Profile Quad Flat Package) packages. The ZIF (Zero Insertion Force) socket on the adapter has an operating (mechanical) warranty of 10,000 actuations, ensuring its durability and reliability during repeated use. The adapter is manufactured in Slovakia with a high level of craftsmanship and quality.



The order number for this adapter is 70-0848. It features a ZIF QFP120 socket with an OpenTop type design, which allows for easy insertion and removal of the LQFP120 package. The OpenTop design provides a convenient and reliable connection to the microcontroller in the LQFP120 package for programming and testing operations.



The bottom of the adapter has 2 rows of 2x24 pins, arranged in a square pattern with a pin pitch of 0.6x0.6mm and rows spacing of 600 mil. This configuration provides a reliable and secure connection to the microcontroller in the LQFP120 package, ensuring accurate programming and testing operations.



The adapter is a valuable tool for electronic engineers and technicians working with Fujitsu MB96F38x microcontrollers in LQFP120 packages. It is designed to provide a reliable and efficient interface for programming and testing operations, and is manufactured in Slovakia to ensure high quality and performance.
