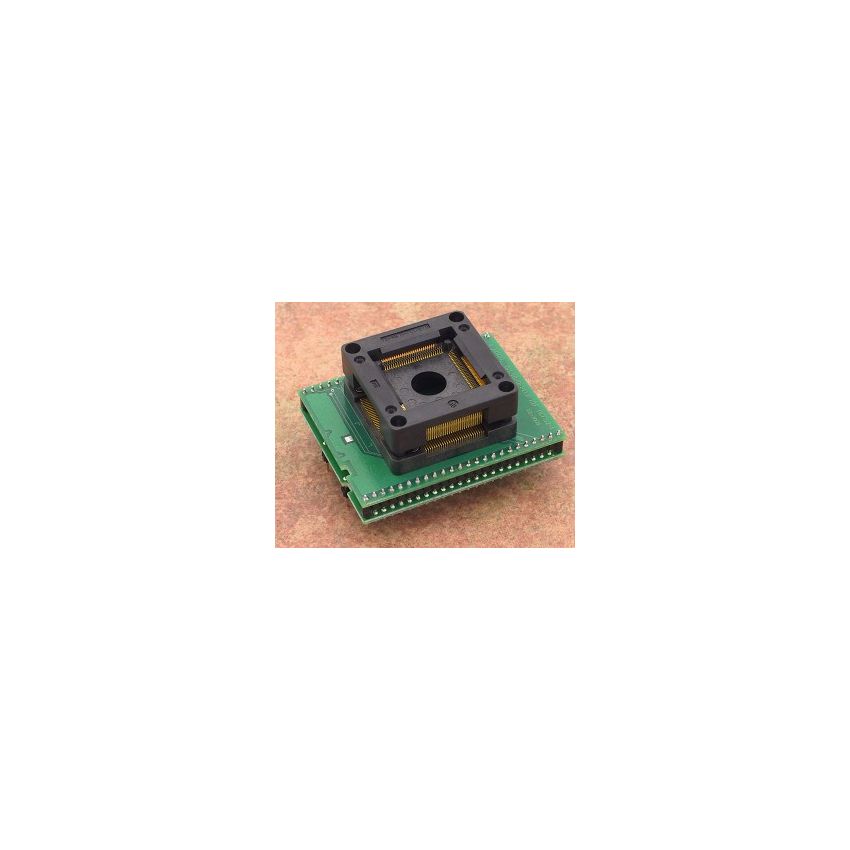

DIL48/QFP112 ZIF MCF52-1

The special adapter with Ord. no. 70-1040 is designed for use with Freescale Coldfire MCF5223x series devices in a QFP (Quad Flat Package) package with 112 pins. It features a ZIF (Zero Insertion Force) socket that is of the OpenTop type, allowing for easy insertion and removal of the QFP112 package without the need for additional tools.



The ZIF socket on this special adapter is designed with a mechanical warranty of 10,000 actuations, indicating its durability and reliability in repeated usage. It is made in Slovakia, ensuring quality manufacturing standards.



The bottom board of the adapter features 2x24 square pins with a size of 0.6x0.6mm and a row spacing of 600mil. These pins are designed to provide proper alignment and electrical connectivity between the adapter and the device being tested or programmed.
