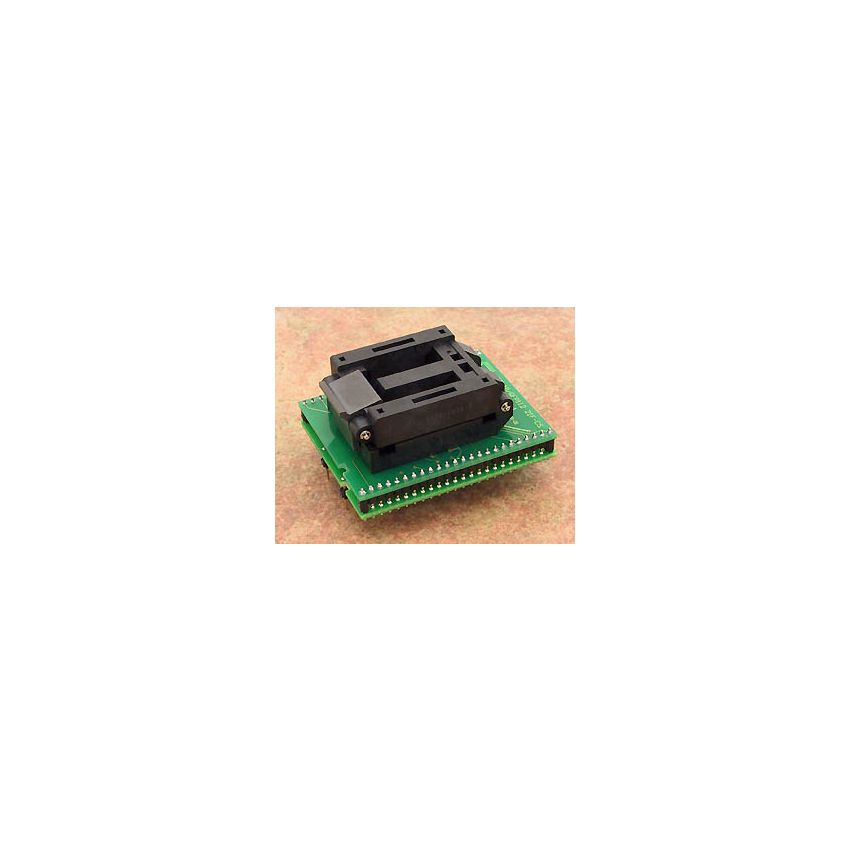

DIL48/QFP112 ZIF-CS SH-1

The special adapter with Ord. no. 70-0538 is designed specifically for Renesas (Hitachi) HD64F7144 microcontrollers in a QFP112 package. It features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations, ensuring durability and reliability during repeated insertions and removals of the microcontroller.



The ZIF socket on this adapter is of the ClamShell type, providing a secure and efficient method for programming or testing the HD64F7144 microcontroller.



The adapter is made in Slovakia, adhering to high-quality manufacturing standards to ensure optimal performance and reliability.



The Ord. no. 70-0538 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



The ZIF socket is designed for QFP112 packages, providing a compatible and reliable connection for programming or testing purposes.



The bottom board of the adapter features 2 rows of 2x24 pins with a square shape and a pin pitch of 0.6x0.6mm, and a row spacing of 600mil, providing a standardized and compatible interface for connecting with the microcontroller.
