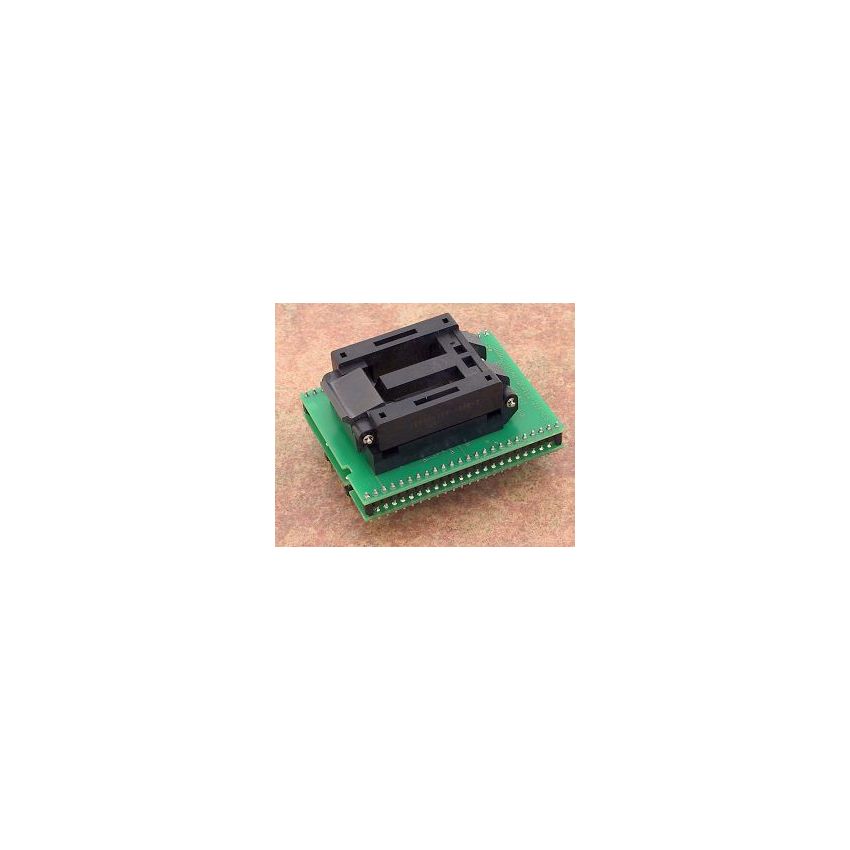

DIL48/QFP112 ZIF-CS HD64-1

The special adapter is designed for use with Renesas (Hitachi) HD6477042F microcontrollers in QFP112 (Quad Flat Package) packages. The ZIF (Zero Insertion Force) socket on the adapter has an operating (mechanical) warranty of 10,000 actuations, ensuring its durability and reliability during repeated use. The adapter is manufactured in Slovakia with a high level of craftsmanship and quality.



The order number for this adapter is 70-0847. It features a ZIF QFP112 socket with a ClamShell type design, which allows for easy insertion and removal of the QFP112 package. The ClamShell design provides a secure and reliable connection to the microcontroller in the QFP112 package for programming and testing operations.



The bottom of the adapter has 2 rows of 2x24 pins, arranged in a square pattern with a pin pitch of 0.6x0.6mm and rows spacing of 600 mil. This configuration provides a reliable and secure connection to the microcontroller in the QFP112 package, ensuring accurate programming and testing operations.



The adapter is a valuable tool for electronic engineers and technicians working with Renesas (Hitachi) HD6477042F microcontrollers in QFP112 packages. It is designed to provide a reliable and efficient interface for programming and testing operations, and is manufactured in Slovakia to ensure high quality and performance.
