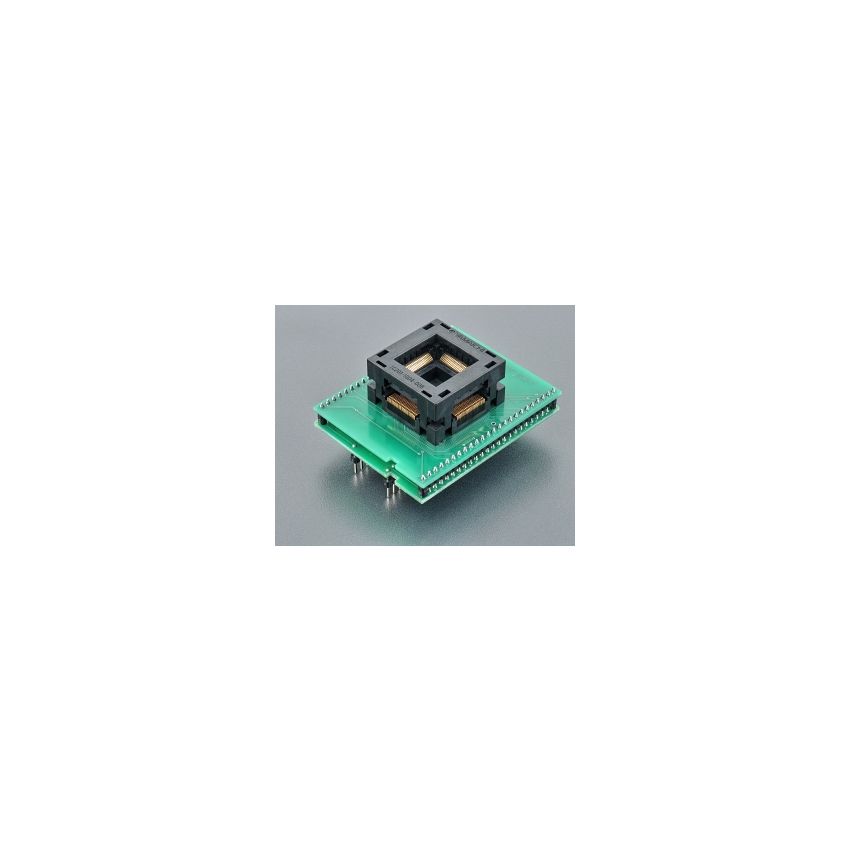

DIL48/QFP100 ZIF PLD-7

The special adapter with Ord. no. 70-0633 is designed for use with FPGA/CPLD devices, specifically Lattice MachXO and LA-MachXO devices, in TQFP100 packages. The adapter features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, ensuring reliable performance for multiple insertions and removals of the TQFP100 package.



The ZIF socket on this adapter has an OpenTop type design, and it is designed to accept TQFP100 packages with a square pattern of 2x24 pins and a pin pitch of 0.6x0.6mm. The rows spacing is 600mil, which is a standard spacing for TQFP packages.



The adapter is made in Slovakia, known for its high-quality manufacturing standards, ensuring durability and reliability. It is suitable for use in programming or testing of FPGA/CPLD devices with TQFP100 packages, providing a reliable solution for these types of devices.



The Ord. no. 70-0633 special adapter is a reliable tool for working with Lattice MachXO and LA-MachXO devices in TQFP100 packages, offering a ZIF socket with a mechanical warranty, high-quality manufacturing, and compatibility with standard pin pitch and rows spacing.
