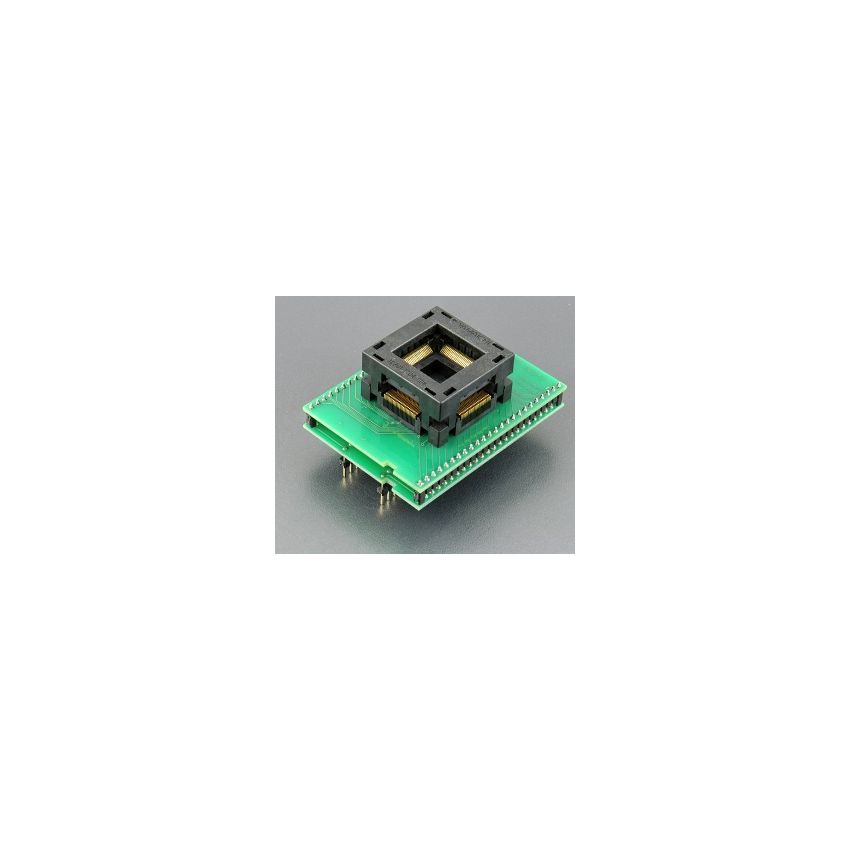

DIL48/QFP100 ZIF PLD-3

The special adapter, designated by Ord. no. 70-0335, is specifically designed for use with Altera EPM7064S and EPM7128S CPLD devices in TQFP100 package. This adapter is tailored to provide efficient and reliable programming and testing of CPLD devices in mass-production environments.



The ZIF (Zero Insertion Force) socket of this adapter is designed to provide a mechanical warranty of 10,000 actuations, ensuring durability and longevity for repeated use in programming and testing operations. The OpenTop type socket allows for easy insertion and removal of TQFP100 devices without the need for excessive force or complicated procedures.



The bottom board of this adapter features 2 rows of 2x24 pins in a square pattern with a pitch of 0.6x0.6mm and a row spacing of 600mil. This configuration provides a reliable and secure connection to Altera EPM7064S and EPM7128S CPLD devices during programming and testing operations.



The special adapter is made in Slovakia with high-quality materials and manufacturing processes, ensuring its reliability and durability for mass-production applications. It is identified by Ord. no. 70-0335 and is a reliable tool for programming and testing Altera EPM7064S and EPM7128S CPLD devices in TQFP100 package in production environments.
